Part #: 31PCT170T4-0032
(31PCT170T4-Y/Y/R-140)

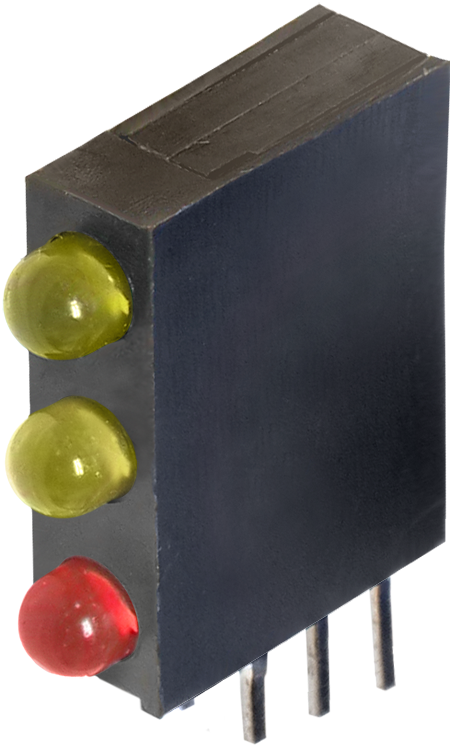

PC Board LED, 3mm Dome Diffused, Right Angle 3x1 TriLevel, Y/Y/RTriLevel 3x1, 0.170"Wx0.600"Hx0.460"L, Hi-Effic or Sunlight-Visible, Diffused or ClearCustom Option Colors in 3 Positions Available
TriLevel 3x1, 0.170"Wx0.600"Hx0.460"L, Hi-Effic or Sunlight-Visible, Diffused or ClearCustom Option Colors in 3 Positions Available
Custom Option Colors in 3 Positions Available
| Replaces Incandescent/LED: | Dialight 564-0100, 564-0200, 564-0300, 564-0700, 564, CM/IDI 5693F, Kingbright L934, DDP, Lumex, Kingbright, VCC, IDEA |
| LED/Incandescent Cross Reference Tool |
Features
- 3 Year LEDtronics Warranty
- Solid-State, Long Life
- LED PC Board Logic or Status Indicators
- Printed Circuit Board mounted LED Indicator
- Direct Cross to Dialight, CML, IDI, VCC, DDP, Lumex
- Choice of other standard LED Colors in Diffused or Clear
- Choice of Hi-Efficiency or Ultra-Bright Intensities
- Choice of One Level, Bi-Level, Tri-Level or Quad-Level
- Choice of BiColor or Custom LED color each position
- Volume Discount Price available. Contact Sales
- 40+ Years LEDtronics Design & Manufacturing
Choose Options:
Base Type OptionsColor OptionsLens OptionsDimensions Options
Spec Sheets
Specifications
| Web Description | Miniature LED Lamp, Telephone Slide T2-#5, 1.12"Lx0.29"W, Orange, 28Vdc |
|---|---|
| Description | 5SB206CO6-28V |
| Base Type | Telephone Slide T2-#5 |
| Dimensions | 1.12"Lx0.29"W |
| Color | Orange |
| Color | 608nm, Orange |
| Voltage (V) | 24/28Vdc |
| Power (Watts) | 0.36 W |
| Current (Amps) | 0.013 A |
| Operating Temp | ~-30°C to ~+50°C |
| Intensity (Candela) | |
| Lumens | |
| SCP (Spherical Candela) | |
| Viewing Angle | 140° |
| Electrical-Optical Characteristics (Ta = 25°C) | |
