Part #: 31PCT170TWOG4B
(3mm,Rt.Angle,Trilevel 3x1,BiColor OG)

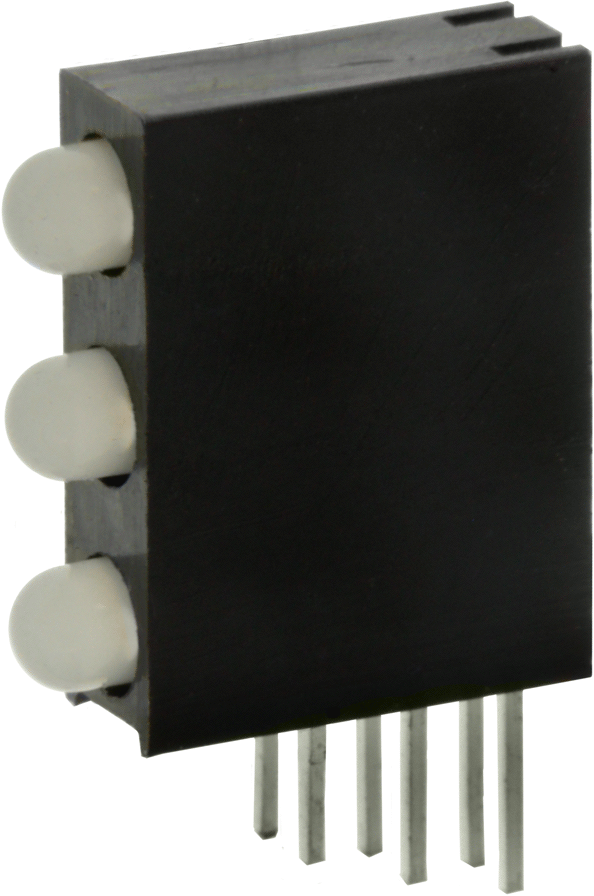

PC Board LED, 3mm Dome Milky, Right Angle 3x1 TriLevel, OG/OG/OG, BiColorTriLevel 3x1, 0.170"Wx0.600"Hx0.460"L, Hi-Effic or Sunlight-Visible, Diffused or ClearCustom Option Colors in 3 Positions Available
TriLevel 3x1, 0.170"Wx0.600"Hx0.460"L, Hi-Effic or Sunlight-Visible, Diffused or ClearCustom Option Colors in 3 Positions Available
Custom Option Colors in 3 Positions Available
| Replaces Incandescent/LED: | Dialight 564-0100, 564-0200, 564-0300, 564-0700, 564, CM/IDI 5693F, Kingbright L934, DDP, Lumex, Kingbright, VCC, IDEA |
Features
- 3 Year LEDtronics Warranty
- Solid-State, Long Life
- LED PC Board Logic or Status Indicators
- Printed Circuit Board mounted LED Indicator
- Direct Cross to Dialight, CML, IDI, VCC, DDP, Lumex
- Choice of other standard LED Colors in Diffused or Clear
- Choice of Hi-Efficiency or Ultra-Bright Intensities
- Choice of One Level, Bi-Level, Tri-Level or Quad-Level
- Choice of BiColor or Custom LED color each position
- Volume Discount Price available. Contact Sales
- 40+ Years LEDtronics Design & Manufacturing
Choose Options:
Base Type OptionsColor OptionsLens OptionsDimensions Options
Spec Sheets
Specifications
| Web Description | PC Board LED, 1.8mm Dome Diffused, Right Angle 4x1 Quad-Level, 0.20"Wx0.465"H, G/G/G/G |
|---|---|
| Description | 1.8mm,Rt.Angle,Quad-Level 4x1,G/G/G/G |
| Dimensions | 0.20"Wx0.465"H |
| Color | G/G/G/G Rev Polarity |
| λp, nm | |
| Lens | Diffused |
| Voltage (V) | 2.2Vf |
| Power (Watts) | |
| Current (Amps) | |
| Operating Temp | -40°C~+85°C |
| Intensity (Candela) | |
| Viewing Angle | ~45° to ~55° |
| Electrical-Optical Characteristics (Ta = 25°C) | |
