Home > Products > BS858CWF-120VAC

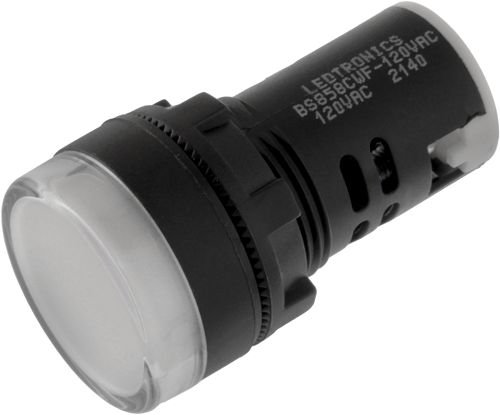

Part #: BS858CWF-120VAC
(***120Vac,White,22mm Mtg.Dia.)
LED Panel Indicators, Bolt-on, 22mm (7/8") Mtg. Dia., 120Vac, Cool White8-LED, Ultra-Bright, Lo Profile Diffused Lens, Wide Angle View
8-LED, Ultra-Bright, Lo Profile Diffused Lens, Wide Angle View
| Replaces Incandescent/LED: | BS851 & BS854 Series |
Features
- 3 Year LEDtronics Warranty
- Long Life. Energy Savings. Shock/Vibration Resistant
- Recommended panel hole size: 22mm (7/8")
- For Panels no greater than 0.335-in. thickness
- Ultra-Bright 8-LED. Wide Angle Illumination
- Polycarbonate lens with internal diffuser
- Choice of other standard LED Colors
- Choice of other standard Input Voltages
- Custom Voltages for high volume OEM requirements
- Volume Discount Price available. Contact Sales
- 40+ Years LEDtronics Design & Manufacturing
Price: $30.68 each | Min Qty: 25
Choose Options:
Voltage OptionsColor OptionsLens OptionsDimensions Options
Specifications
| Web Description | LED Panel Mount Indicator, 22mm (7/8") Mtg.Dia., 1.98"Lx1.122"D, Cool White, 120Vac | ||
|---|---|---|---|
| Description | 22mm panel mounting hole, flat lens, internal diffuser, black body | ||
| Dimensions | L1.98 x Ø1.122 inch | ||
| Color | Cool White | ||
| Color Temp | |||
| Lens | Low Profile Diffused | ||
| Lens Cap Color |
| ||
| Voltage (V) | 120Vac | ||
| Power (Watts) | 1.1 W | ||
| Current (Amps) | 0.011 A | ||
| Operating Temp | ~-30°C to ~+50°C | ||
| Intensity (Candela) | 4.67 cd | ||
| Lumens | |||
| SCP (Spherical Candela) | |||
| Viewing Angle | ~105° to ~115° | ||
| Electrical-Optical Characteristics (Ta = 25°C) | |||
