Part #: BSD-1318-6AG
(10K-5W,EXT RES,GRN,Ba9S Min.Bay)

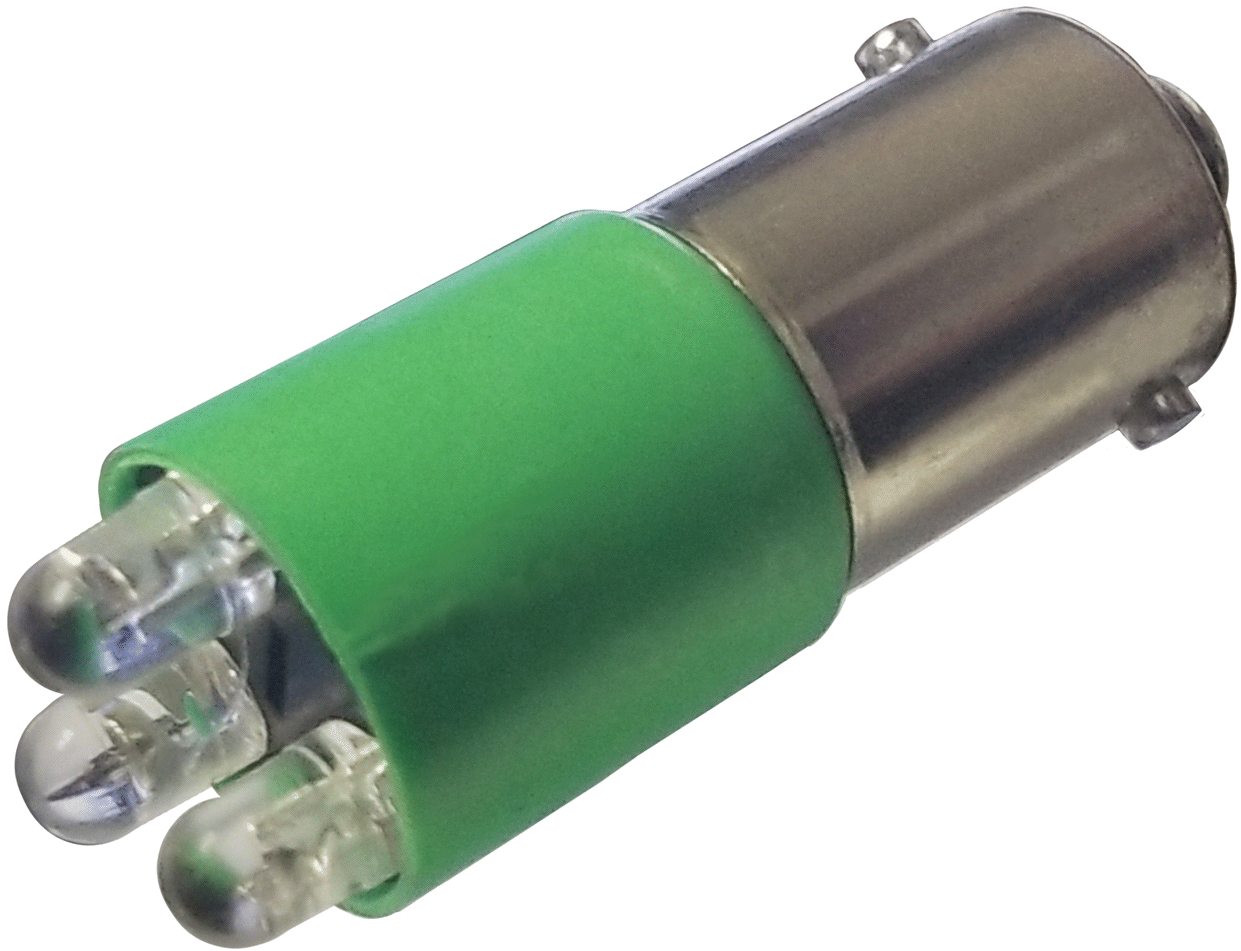

LED Bulb,Mini. Bayonet T3-1/4 (Ba9s), Ultra-Bright 3/6-LED, Aqua Green,11Vf (Ext.Res.Reqd)for Square D Holder KM38Lx, Higher Intensity, 10K External Resistor RequiredSchneider/Square-D Part# 65088-052-12
for Square D Holder KM38Lx, Higher Intensity, 10K External Resistor RequiredSchneider/Square-D Part# 65088-052-12
Schneider/Square-D Part# 65088-052-12
| Replaces Incandescent/LED: | 65088-052-12 for Square D Holder KM38LG-GREEN |
Features
- 3 Year LEDtronics Warranty
- Long Life. Energy Savings. Shock/Vibration Resistant
- Direct Drop-in Replacement to high failure Incandescent
- Requires External Resistor based on Input Voltage
- Generally used in Industrial Control Pilot Lights
- Ultra-Bright 6-LED version. Wide Angle Illumination
- Choice of other standard LED Colors & Input Voltages
- Custom Voltages for high volume OEM requirements
- Volume Discount Price available. Contact Sales
- 40+ Years LEDtronics Design & Manufacturing
Price: $18.00 each | Min Qty: 10
Choose Options:
Voltage OptionsColor OptionsBase Type OptionsDimensions Options
Specifications
| Web Description | LED Bulb, Mini. Bayonet T3-1/4 (Ba9s), Aqua Green, 11Vf (Ext.Res.Reqd) |
|---|---|
| Description | 10K-5W,EXT RES,GRN,Ba9S Min.Bay |
| Base Type | Mini. Bayonet T3-1/4 (Ba9s) |
| Dimensions | 1.19"Lx0.408"D |
| Color | Aqua Green |
| Wavelength (nm) | 525nm |
| Polarity (Center Contact) | BipolarDC |
| Voltage (V) | 11Vf (Ext.Res.Reqd) |
| Power (Watts) | 0.15 W |
| Current (Amps) | 0.015 A |
| Operating Temp | ~-30°C to ~+50°C |
| Intensity (Candela) | 10.300 cd |
| Lumens | 9.38 lm |
| SCP (Spherical Candela) | 0.75 mscp |
| Viewing Angle | --° |
| Electrical-Optical Characteristics (Ta = 25°C) | |
Options
- Not all possible combinations of voltage, intensity, and angle are available.
- Other Colors
- Other Voltages
- Other Base Types
- Optional Viewing Angles
- Baseless Lamps Using 12" wire leads
Caution
- For Square-D holder, exterior resistor required.
