Part #: BSD-2080-002
(***120Vac/130Vdc/140Vdc,W.White)

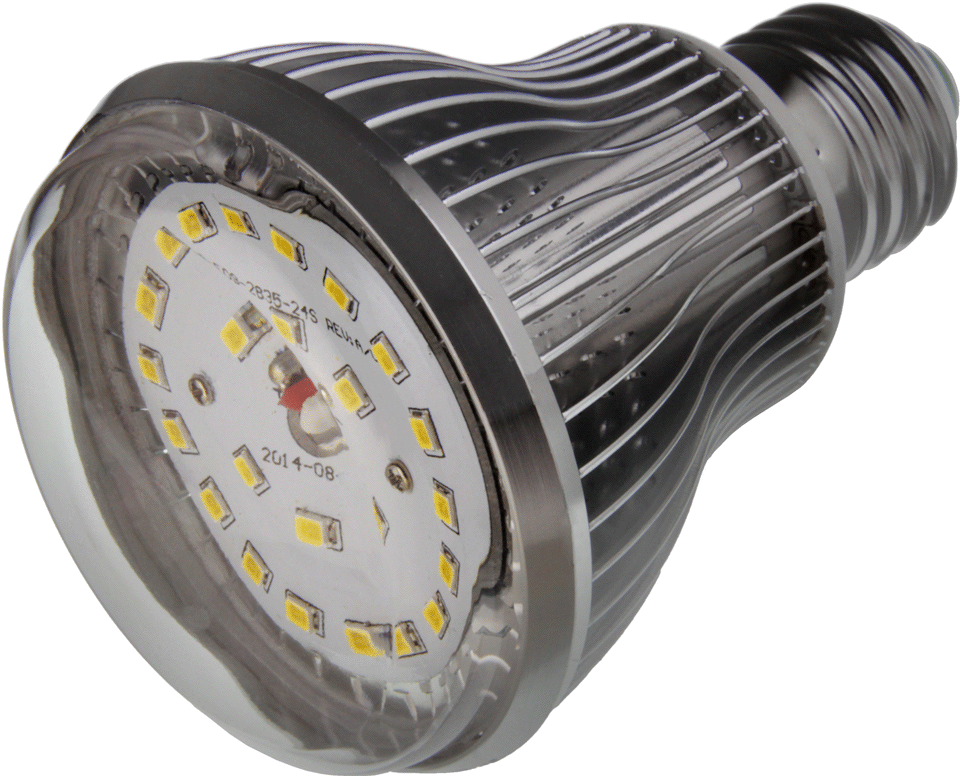

LED Bulb, Multi-voltage Utility AppsE26 Medium Screw-in Base, A21 SizeVoltages: 120Vac / 130Vdc~140Vdc; 3000K White
E26 Medium Screw-in Base, A21 SizeVoltages: 120Vac / 130Vdc~140Vdc; 3000K White
Voltages: 120Vac / 130Vdc~140Vdc; 3000K White
LED/Incandescent Cross Reference Tool
Features
- 3 Year LEDtronics Warranty
- For general illumination in: Power plants, utilities, transmission stations, dam facilities
- Used for emergency general lighting areas where 120Vac power goes off and backup 130-140Vdc (up to 145Vdc) power comes on.
- Emergency lighting and rural area lighting (where DC power grid is available).
- A21 size fits practically every A19 application
- Lower power consumption: Only 11 Watts or less
- Durable design: UV-protected polymer lens; Lexan sleeve; Nickel-plated brass base
- Solid-state: High-shock & high-vibration resistance
- Easy installation using existing E26 Edison screw-in fixtures
- Wide temperature range: ~-22F to ~+122F [~-30C to ~+50C]
- 40+ Years LEDtronics Design & Manufacturing
Price: $39.83 each | Min Qty: 10
Choose Options:
Color Temperature OptionsDimensions Options
Applications
- For general illumination in: Power plants, utilities, transmission stations, dam facilities
- Bulb handles 120VAC power outage, falls back to battery-sourced 130~140Vdc power
- Provides directional 120deg-beam lighting
- Train / rail car interior lighting
- Uninterrupted emergency lighting
- Focused reading and task lighting
- Can be powered by solar-cell-charged battery applications
Specifications
| Voltage | 120 VAC | 130 VDC | 140 VDC |
|---|---|---|---|
| Web Description | LED Bulb, Edison Screw E26 (25mm), 3.94"Lx2.73"D, Low-Profile WaterClear, 120Vac/130Vdc, Warm White | ||
| Dimensions | 3.94"Lx2.73"D | ||
| Color | Warm White | ||
| Color Temp | 3000K | ||
| Polarity (Center Contact) | BipolarDC (+/-) | ||
| Voltage (V) | 120Vac/130~140Vdc | ||
| Power (Watts) | 11.1 W | 11 W | 11 W |
| Current (Amps) | 0.096 A | 0.085 A | 0.078 A |
| Operating Temp | ~-30°C to ~+50°C, Dry locations | ||
| Efficacy | 71.8 | 74.4 | 74.3 |
| Intensity (Candela) | 283? cd | -- cd | -- cd |
| Lumens | 797.9 lm | 818.1 lm | 817.2 lm |
| Viewing Angle | 117°x117° | ||
| Electrical-Optical Characteristics (Ta = 25°C) | |||
Options
- A19 Bulb with E27 Euro Base
- Other voltages
- Other colors not shown
- Tinted clear lens or frosted lens colors
