Home > Products > CL120TY3B

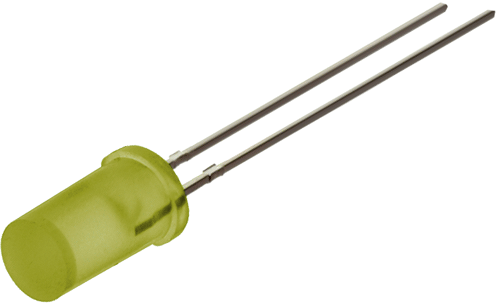

Part #: CL120TY3B
(3mm,Cylindrical,Yellow)
Discrete LED, 3mm, Cylindrical, Diffused, Yellow, 2.1VfHi-Efficiency, Single Color 2 LeadsUltra-Bright Optional for Large Volume
Features
Price: $0.23 each | Min Qty: 5000
Hi-Efficiency, Single Color 2 LeadsUltra-Bright Optional for Large Volume
Features
Price: $0.23 each | Min Qty: 5000
Ultra-Bright Optional for Large Volume
Features
Price: $0.23 each | Min Qty: 5000
Choose Options:
Voltage OptionsColor OptionsLens OptionsDimensions Options
Specifications
| Web Description | Discrete LED, 3mm Cylindrical Diffused, Yellow, 2.1Vf |
|---|---|
| Description | 3mm,Cylindrical,Yellow |
| Dimensions | 0.240"Lx0.15"D |
| Color | Yellow |
| Wavelength (nm) | 585nm |
| Lens | 3mm Cylindrical Diffused |
| Voltage (V) | 2.1Vf |
| Current (Amps) | 0.020 A |
| Operating Temp | ~-30°C to ~+50°C |
| Iv, typ (min) | 3.5 mcd |
| Lumens | |
| SCP (Spherical Candela) | |
| Viewing Angle | 130° |
| Electrical-Optical Characteristics (Ta = 25°C) | |
