Home > Products > CLL2X2CT-3045W-101DM-EBU
Part #: CLL2X2CT-3045W-101DM-EBU
(@@@100-277Vac,CT,3000,3500,4000,5000K,DM)

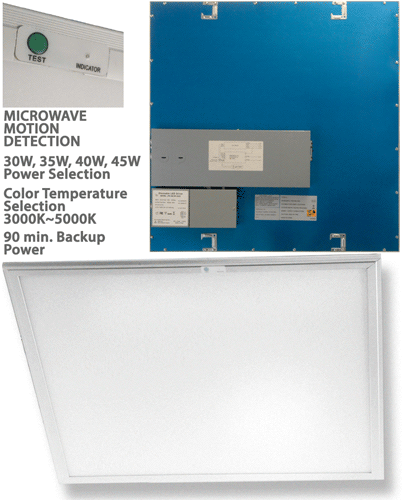

LED Thin Ceiling Light Panel, 3000K~5000K Tunable, 100-277Vac, 30/35/40/45WTunable CCT & Wattage, 90-minute Emergency Power Backup, Wide Angle 120° Beam
Features- 5 Year LEDtronics Warranty
- 90-plus Minutes of Emergency Backup Power During Power Outages
- Includes Charging Indicator Test Switch
- Long Lifespan: Lumen Maintenance over 70% @ 50,000+ Hours
- Energy Savings up to 75% over Fluorescents
- Variable Wattage in 5W Increments: From 30W to 45W
- Switch Setting for White Color Temperature: 3000K, 3500K, 4000K, or 5000K
- Solid State — High Shock- & Vibration-Proof
- LM80 SMD Chips: High Lumen, High CRI, Negligible Heat
- White Trim Aluminum Frame, High Quality Light Guide Plate
- Frosted PS Diffuser Offers High Uniformity & Transmission
- Provides for External 0-10V or PWM Dimmer (No Flicker)
- No UV or IR, No Glass, No Mercury — RoHS Compliant
- 40+ Years LEDtronics Design & Manufacturing
Tunable CCT & Wattage, 90-minute Emergency Power Backup, Wide Angle 120° Beam
Features- 5 Year LEDtronics Warranty
- 90-plus Minutes of Emergency Backup Power During Power Outages
- Includes Charging Indicator Test Switch
- Long Lifespan: Lumen Maintenance over 70% @ 50,000+ Hours
- Energy Savings up to 75% over Fluorescents
- Variable Wattage in 5W Increments: From 30W to 45W
- Switch Setting for White Color Temperature: 3000K, 3500K, 4000K, or 5000K
- Solid State — High Shock- & Vibration-Proof
- LM80 SMD Chips: High Lumen, High CRI, Negligible Heat
- White Trim Aluminum Frame, High Quality Light Guide Plate
- Frosted PS Diffuser Offers High Uniformity & Transmission
- Provides for External 0-10V or PWM Dimmer (No Flicker)
- No UV or IR, No Glass, No Mercury — RoHS Compliant
- 40+ Years LEDtronics Design & Manufacturing
Features
- 5 Year LEDtronics Warranty
- 90-plus Minutes of Emergency Backup Power During Power Outages
- Includes Charging Indicator Test Switch
- Long Lifespan: Lumen Maintenance over 70% @ 50,000+ Hours
- Energy Savings up to 75% over Fluorescents
- Variable Wattage in 5W Increments: From 30W to 45W
- Switch Setting for White Color Temperature: 3000K, 3500K, 4000K, or 5000K
- Solid State — High Shock- & Vibration-Proof
- LM80 SMD Chips: High Lumen, High CRI, Negligible Heat
- White Trim Aluminum Frame, High Quality Light Guide Plate
- Frosted PS Diffuser Offers High Uniformity & Transmission
- Provides for External 0-10V or PWM Dimmer (No Flicker)
- No UV or IR, No Glass, No Mercury — RoHS Compliant
- 40+ Years LEDtronics Design & Manufacturing
Choose Options:
Voltage OptionsColor/Temp OptionsPower OptionsDimensions Options
Specifications
| Web Description | LED Thin Ceiling Light Panel, 2FTx2FT, 3000K-5000K Tunable, 100-277Vac, 30/35/40/45W |
|---|---|
| Dimensions | 2FTx2FT |
| Color | 3000K to 5000K Tunable |
| Wavelength (nm) | 3000K to 5000K |
| Voltage (V) | 100-277Vac |
| Power (Watts) | 30/35/40/45 W |
| Current (Amps) | 0.251~0.369 A |
| Operating Temp | ~-20°C to ~+45°C |
| Power Factor | |
| Efficacy | |
| Intensity (Candela) | 1105~1522 cd |
| Lumens | 3139~4390 lm |
| CRI | |
| Viewing Angle | 120° |
| Electrical-Optical Characteristics (Ta = 25°C) | |
White LED technology is patent protected in the US. LEDtronics White LED products are covered under these patents.
Prop. 65 Warning
