Home > Products > DB606-0CW-014S
 |
Part #: DB606-0CW-014S
(12/14Vdc,C.White,Ba15d Base)

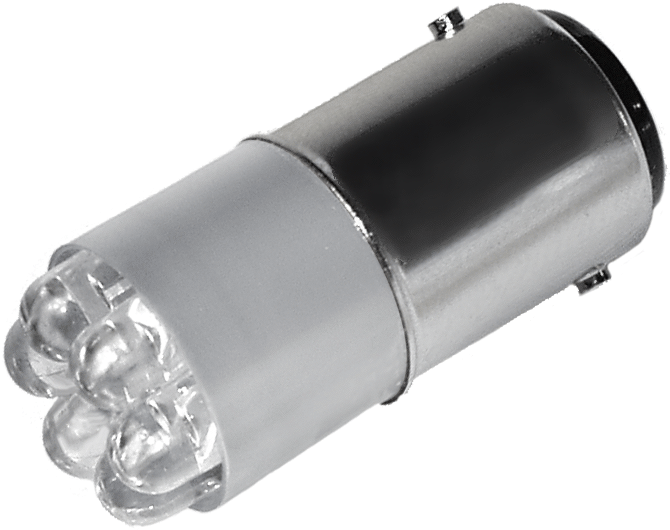

LED Bulb,Intermediate, 6-LED, DC Bayonet Ba15d, 12/14Vdc, Cool WhiteUltra-Bright, Standard Beam, Choice of Other Voltages, Color, Light Beam AnglesDirect Incandescent Replacement
Ultra-Bright, Standard Beam, Choice of Other Voltages, Color, Light Beam AnglesDirect Incandescent Replacement
Direct Incandescent Replacement
| Replaces Incandescent/LED: | 90 |
Features
- 3 Year LEDtronics Warranty
- Long Life. Energy Savings. Shock/Vibration Resistant
- Direct Drop-in Replacement to high failure Incandescent
- Ultra-Bright 6-LED version. Choice of Various Beam Angles
- Choice of other standard LED Colors
- Choice of other standard Input Voltages
- Other Miniature/Intermediate Bases: E12, E14, E17, Ba15s
- Custom Voltages for high volume OEM requirements
- Volume Discount Price available. Contact Sales
- 40+ Years LEDtronics Design & Manufacturing
Price: $19.19 each | Min Qty: 10
Choose Options:
Voltage OptionsColor OptionsBase Type OptionsDimensions Options
Spec Sheets
Specifications
| Web Description | Miniature LED Lamp, 1-LED, Ultra, Miniature Screw E10, 1.00"Lx0.40"D, Ultra Red, 28Vdc |
|---|---|
| Description | 24/28Vdc,Ul.Red,,Min.Screw E10 |
| Base Type | Miniature Screw E10 |
| Dimensions | 1.00"Lx0.40"D |
| Color | Ultra Red |
| Wavelength (nm) | 657nm |
| Polarity (Center Contact) | BipolarDC (+/-) |
| Voltage (V) | 28Vdc |
| Power (Watts) | 0.42 W |
| Current (Amps) | 0.016 A |
| Operating Temp | ~-30°C to ~+50°C |
| Intensity (Candela) | 0.09 cd |
| Lumens | 0.19 lm (Lumen) |
| SCP (Spherical Candela) | 0.02 mscp |
| Viewing Angle | ~90° to ~110° |
| Electrical-Optical Characteristics (Ta = 25°C) | |
