Custom Optional Viewing Angles
12° to 15° Narrow Angle (N) |
20° to 30° Standard Angle (S) |
45° to 50° Medium Angle (M) |
120° to 125° Wide Angle (W) |
Note: As the LED Directional Beam goes Narrow, the Candela Intensity becomes Higher.
As the LED Directional Beam goes Wider, the Candela Intensity becomes Lower.
Spherical Lumens (SCP) will always be very low in Directional Beam LED Bulbs.

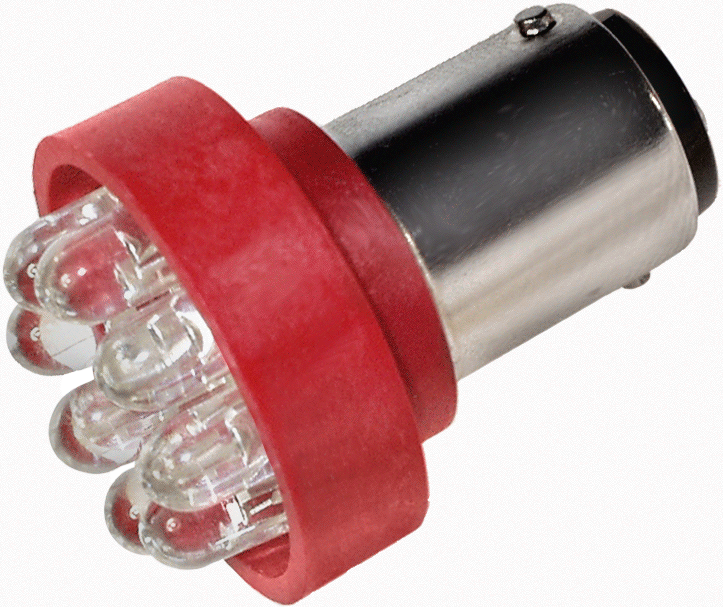

Part #: DB608-0UR-012N
(12Vdc,Ul.Red,Ba15d Base)
LED Bulb,Intermediate, 8-LED, Double Contact DC Bayonet Ba15d, 12Vdc, Ultra RedUltra-Bright, Narrow Beam, Choice of Other Voltages, Color, Light Beam AnglesDirect Incandescent Replacement
Ultra-Bright, Narrow Beam, Choice of Other Voltages, Color, Light Beam AnglesDirect Incandescent Replacement
Direct Incandescent Replacement
LED/Incandescent Cross Reference Tool
Features
- 3 Year LEDtronics Warranty
- Long Life. Energy Savings. Shock/Vibration Resistant
- Direct Drop-in Replacement to high failure Incandescent
- Ultra-Bright 8-LED version. Choice of Various Beam Angles
- Choice of other standard LED Colors
- Choice of other standard Input Voltages
- Other Miniature/Intermediate Bases: E12, E14, E17, Ba15s
- Custom Voltages for high volume OEM requirements
- Volume Discount Price available. Contact Sales
- 40+ Years LEDtronics Design & Manufacturing
Choose Options:
Voltage OptionsColor OptionsBase Type Options
Spec Sheets
Specifications
| Web Description | LED Lamp,Right Angle, Miniature Wedge T3-1/4 (9mm), Super Red, 28Vdc |
|---|---|
| Description | 24/28Vdc,Sp.Red,T3-1/4 Wedge |
| Base Type | Miniature Wedge T3-1/4 (9mm) |
| Dimensions | T3-1/4 |
| Color | Super Red |
| Wavelength (nm) | 630nm |
| Voltage (V) | 24Vdc |
| Power (Watts) | 0.48 W |
| Current (Amps) | 0.020 A |
| Operating Temp | ~-30°C to ~+50°C |
| Intensity (Candela) | -- cd |
| Lumens | |
| SCP (Spherical Candela) | |
| Viewing Angle | |
| Electrical-Optical Characteristics (Ta = 25°C) | |
