Use IR cameras to view IR illuminationHome > Products > DBRA631-881-028V
Part #: DBRA631-881-028V
(28Vdc,InfraRed,,Ba15d Base,Adj,1Side)

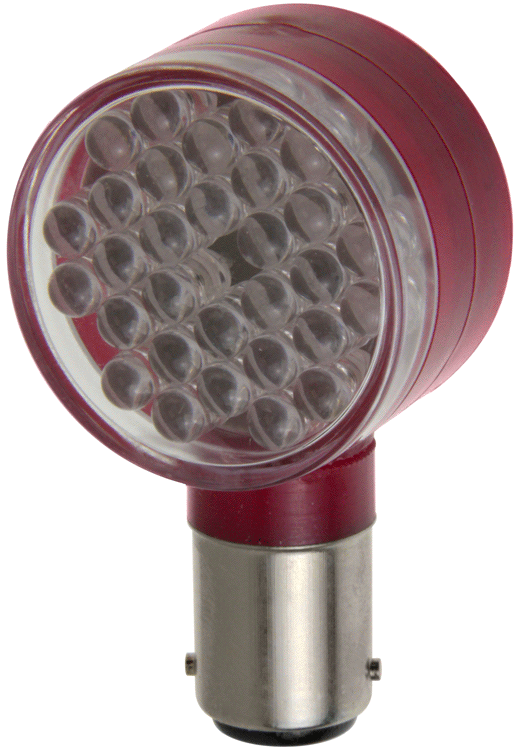

LED Infrared Light Bulb, 15mm Double-Contact Bayonet
Right-angled ∅1-1/3in. Lamp901 nm InfraRed Wavelength — 28Vdc — 140° radiant angle
901 nm InfraRed Wavelength — 28Vdc — 140° radiant angle
| Replaces Incandescent/LED: | 312, 1638, 1692 |
Features
- 3 Year LEDtronics Warranty
- Right-angled lighting in relation to plug-in socket.
- Energy savings of up to 90% over conventional lighting
- Long life: Lumen maintenance of the white LEDs is greater than 70% at 15,000 hours of operation.
(Rated average life based on engineering testing and probability analysis). - Wide flood beam radiant angle of 8?5°
- Uses 15mm Single-Contact Bayonet for lines running 28 Volts DC.
- Bipolar lamp adjusts to any DC polarity
- For applications in NEC-defined dry environments.
- Suitable for use in open luminaires.
- For operation within a temperature range of -30°C to +50°C.
- Environmentally responsible RoHS compliant
- No UV. No glass, shock & vibration resistance. Targeted infrared illumination.
- 40+ Years LEDtronics Design & Manufacturing
Choose Options:
Voltage OptionsColor OptionsBase Type OptionsDimensions Options
Applications
- Suitable for use in open fixtures and enclosures where temperatures do not commonly exceed the recommended operating range.
- Applications in dry environments as defined by NEC guidelines.
- Black light inspections.
- Covert illumination when used with infrared cameras.
- Security applications.
Specifications
| Web Description | LED Bulb,Intermediate, DC Bayonet Ba15d, Ba15d, InfraRed 880nm, 28Vdc |
|---|---|
| Description | 28Vdc,InfraRed,,Ba15d Base,Adj,1Side |
| Base Type | DC Bayonet Ba15d |
| Style | MR11-size Rt-angle 30-Cluster |
| Color | InfraRed |
| λp, nm | 901 nm |
| Voltage (V) | 28Vdc |
| Power (Watts) | 3.5 W |
| Radiant Power | (TBD) W/Sr |
| Current (Amps) | 0.126 A |
| Operating Temp | ~-30°C to ~+50°C, Dry locations |
| Viewing Angle | 140° radiant angle |
| Electrical-Optical Characteristics (Ta = 25°C) | |
Options
- Baseless lamp versions with 12" wire leads
- Other infrared nanometer wavelengths
- Red/Infrared dual emitters.
- Other radiant beam angles, narrow to wide.
- Not all possible combinations of voltage, intensity, and beam angle are available.
Caution
Use Infrared cameras to view IR illumination. Follow medical guidelines for vision safety when testing lighting and designing lighting function.- Infrared cameras are used to view infrared light.
- Not for dimming applications.
Use Infrared cameras to view IR illumination. Follow medical guidelines for vision safety when testing lighting and designing lighting function.
