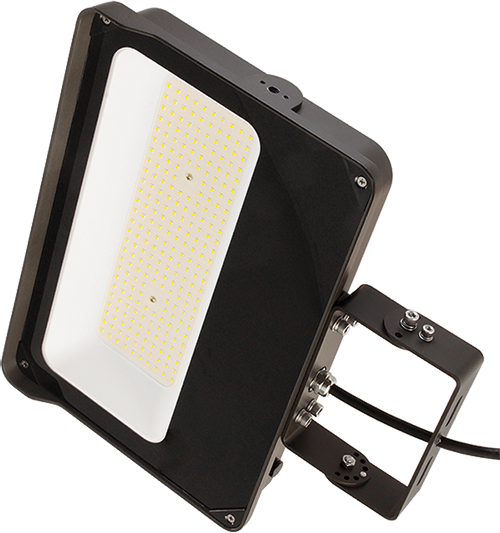

Part #: FLL005-150W-XPW-101A-D
(120Vac,P.White,Adjustable Trunion Brkt)
LED Floodlight, 149 W, Adjustable Trunion Brkt, 9.5"Lx13.8"Wx3.2"T, Pure White, 120VacType-V circular beam, UL listed, IP65For illuminating building facades, sign lighting, wall washing building exteriors, landscape lighting.
Features- 3 Year LEDtronics Warranty
- Die-cast aluminum lightweight design main body with optimal thermal management that
both enhances LED efficacy and extends component life
- Lumen maintenance over 70% @ 60,000+ hours
- Energy savings of up to 60% over HID lamps
- IP65 rated: Suitable for wet locations
- Input surge protection: 4 kV
- Solid state: Shock, vibration & impact resistant
- Easy to install with ±270° adjustable trunnion-mount bracket
- 40+ Years LEDtronics Design & Manufacturing
Type-V circular beam, UL listed, IP65For illuminating building facades, sign lighting, wall washing building exteriors, landscape lighting.
Features- 3 Year LEDtronics Warranty
- Die-cast aluminum lightweight design main body with optimal thermal management that
both enhances LED efficacy and extends component life
- Lumen maintenance over 70% @ 60,000+ hours
- Energy savings of up to 60% over HID lamps
- IP65 rated: Suitable for wet locations
- Input surge protection: 4 kV
- Solid state: Shock, vibration & impact resistant
- Easy to install with ±270° adjustable trunnion-mount bracket
- 40+ Years LEDtronics Design & Manufacturing
For illuminating building facades, sign lighting, wall washing building exteriors, landscape lighting.
Features
- 3 Year LEDtronics Warranty
- Die-cast aluminum lightweight design main body with optimal thermal management that both enhances LED efficacy and extends component life
- Lumen maintenance over 70% @ 60,000+ hours
- Energy savings of up to 60% over HID lamps
- IP65 rated: Suitable for wet locations
- Input surge protection: 4 kV
- Solid state: Shock, vibration & impact resistant
- Easy to install with ±270° adjustable trunnion-mount bracket
- 40+ Years LEDtronics Design & Manufacturing
Choose Options:
Voltage OptionsPower OptionsColor/Temp OptionsDimensions Options
Spec Sheets
Applications
- For uniform, wide flood lighting distribution applications
- Illuminates building facades
- Sign lighting
- Wall washing Building exteriors
- Landscape lighting
Specifications
| Web Description | LED Floodlight, 149 W, Adjustable Trunion Brkt, 9.5"Lx13.8"Wx3.2"T, Pure White, 120Vac |
|---|---|
| Color | Pure White |
| Color Temp | 5000K |
| Voltage (V) | 120Vac |
| Power (Watts) | 149 W |
| Current (Amps) | 1.26 A |
| Operating Temp | ~-30°C to ~+45°C |
| Power Factor | |
| Intensity (Candela) | 7185 cd |
| Lumens | 18,617 lm |
| CRI | >70 |
| Viewing Angle | 110° |
| Electrical-Optical Characteristics (Ta = 25°C) | |
Possible Options
- 230Vac Higher Voltage
- Black, White, or Custom Housing Color
- Polycarbonate lens
- 3000K Warm White, 4000K Natural White, 5700K True White, 6500K Cool White
- J-box available for wall mount
- 100W, 200W, 240W nominal wattages
Caution
- Requires power directly from line current, with no intervening ballasts from a previous fluorescent
