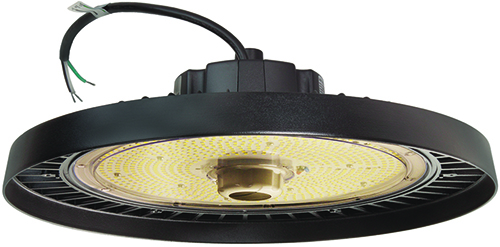

Part #: HBL007-150240W-3550K-101WD-MWS (100-277Vac,CCT&PWR TUN,120 Deg,MWS)

LED High Bay Luminaire, Tunable Power & CCT, 3500K~5000K, 100-277Vac, 150/200/240 W, Dimmable

High Lumen, Dimmable, Beam Width 105° x 115°

Supermarkets, Malls, Arenas, Libraries, Big-Box Stores, Factory Floors, Warehouses, Convention Centers, Gyms

Features

5 Year LEDtronics Warranty
Energy Savings of 70% over Counterpart HIDs on average
ETL Listed (5008744)
Lumen Maintenance over 70% @ 36,000 Hours
3-Way Dimmable: 0-10V Title 24 Compliant
High Lumen, High CRI, Low Glare
Die-Cast Aluminum Alloy Black Housing
Clear, Tempered Glass Lens
IP65: Suitable for High Humidity Sites
No UV / No RF, Impact Resistant, Lightweight (Not tested for RFI)
LM79 / LM80 / ISTMT Reports Available for selected wattages upon request
Efficacy: Up to 169lm/W
Options: Other Voltages, Wattages & White Colors

Choose Options:

Voltage Options

Power Options

Color/Temp Options

Base Type Options

Dimensions Options

Spec Sheets

Applications

Extra Lightweight – Ideal for High Bay Lighting
Factory Production Areas
Indoor Tennis Courts
Subway & Rail Platforms, Toll Booths
Industrial Plants, Workshop Areas
Warehouses, Depots, Conference Halls

Specifications

Web Description	LED High Bay Luminaire,Tunable Power & CCT, 14.18"ODx4.92"W, 3500K-5000K, 100-277Vac, 150/200/240 W, Dimmable
Color	3500K-5000K
Wavelength (nm)	3500~5000K
Voltage (V)	100-277Vac
Power (Watts)	150/200/240 W
Current (Amps)	1.159~1.866 A
Operating Temp	~-20C to ~+65C
Power Factor
Efficacy
Intensity (Candela)	8,578~12,380 cd
Lumens	21,996~31,723 Im
CRI
Viewing Angle	105° x 115°
Electrical-Optical Characteristics (Ta = 25°C)

Caution

If replacing a high bay lamp that was wired through an external ballast, then that ballast must be bypassed and preferably removed, with the HBL005 luminaire connecting directly to the power source.
Intended for downward, vertical lighting only.

Prop. 65 Warning

WARNING: This product can expose you to chemicals including Di(2-ethylhexl)pthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
