Part #: LED48T5-PV1-15W-3050-101WF
(***120-277Vac, CCT Selctable,Frost,15W)

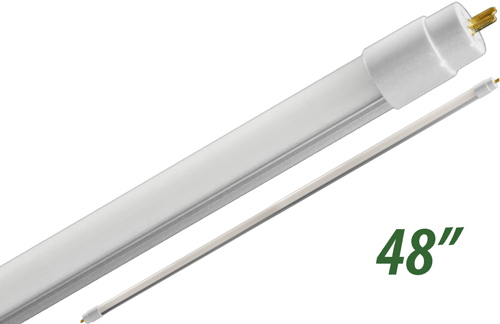

LED T5 Tube Lights, [LENSTYPE], T5 Tubelight 2-pin (G5), 3000K/3500K/4000K/5000K Tunable, 120-277Vac,
Features- 5 Year LEDtronics Warranty
- Easy Replacement for T5 Fluorescent 2-Pin
- LED Driver built-in. Lifespan 50,000 hrs
- Operates on 120~277Vac. Double Ended Ballast Bypass
- Body with PET Coating. Shatterproof Design
- Uses a high quality aluminum PCB for better heat dissipation
- Evenly Diffused Wide Beam Illumination, No Buzzing, No Flickering
- Longer Life, Sustainability, Dependability
- 40+ Years LEDtronics Design & Manufacturing
Features
- 5 Year LEDtronics Warranty
- Easy Replacement for T5 Fluorescent 2-Pin
- LED Driver built-in. Lifespan 50,000 hrs
- Operates on 120~277Vac. Double Ended Ballast Bypass
- Body with PET Coating. Shatterproof Design
- Uses a high quality aluminum PCB for better heat dissipation
- Evenly Diffused Wide Beam Illumination, No Buzzing, No Flickering
- Longer Life, Sustainability, Dependability
- 40+ Years LEDtronics Design & Manufacturing
Choose Options:
Base Type OptionsVariant OptionsVoltage OptionsLens OptionsDimensions Options
Spec Sheets
Applications
- Ideal for Hallway & Walkway Lighting
- Office Lighting
- Production Area Lighting
- Warehouse Lighting
- Retail Store Display Lighting
- Undercabinet Lighting
- Sign Backlighting
Specifications
| Web Description | LED T5 Tube Lights, Frosted, T5 Tubelight 2-pin (G5), 45.80"Lx0.63"D, 3000K/3500K/4000K/5000K Tunable, 120-277Vac, |
|---|---|
| Dimensions | 45.80"Lx0.63"D |
| Color | 3000K/3500K/4000K/5000K Tunable |
| Wavelength (nm) | |
| Lens | Frosted |
| Voltage (V) | 120-277Vac |
| Power (Watts) | |
| Current (Amps) | |
| Operating Temp | ~-20°C to ~+45°C |
| Power Factor | 0.9 |
| Efficacy | |
| Intensity (Candela) | |
| Lumens | 1900 lm |
| CRI | Ra83 |
| Viewing Angle | 180° |
| Electrical-Optical Characteristics (Ta = 25°C) | |
