Home > Products > LED48T8KL7-18W-XNW-102WFA
 |
Part #: LED48T8KL7-18W-XNW-102WFA
(***24-72Vdc,4000K,Frosted,18W,Adj.)

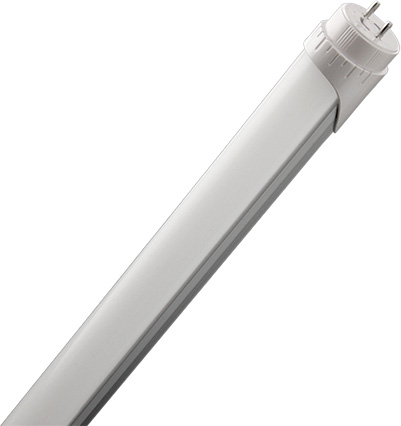

LED T8 Tube Light, 18W, T8 2-Pin (G13), Natural White, 24-72VdcAdjustable Light Direction, Double Ended Input
Adjustable Light Direction, Double Ended Input
| Replaces Incandescent/LED: | Ideal for RailCars, Buses, Trams, Coaches, General Transport, Solar or Alternative |
Features
- 5 Year LEDtronics Warranty
- Longer Life, Sustainability, Dependability
- Easy Replacement for T8 Fluorescent 2-Pin (G13)
- Dual-Pin, G13 Base Ends
- Lumen Maintenance over 70% @ 50,000+ Hours
- Even Lighting, No Buzzing, No Flickering
- No UV/IR Radiation, No RF Interference
- No Toxic Mercury — RoHS Compliant
- 40+ Years LEDtronics Design & Manufacturing
Choose Options:
Voltage OptionsColor/Temp OptionsLens OptionsDimensions Options
Spec Sheets
Applications
- Ceiling Lights in Office, Schools, Hallways
- Parking Structure & Garage Lighting
- Production Area, Warehouse Lighting
- Task Lighting, Cubicles, Workbenches
- Coolers, Freezers, Vending Machines
- Retail Store Display Lighting
- Transportation, Railroad, Buses
- Undercabinet or Cabinet Lights
- Light Boxes, Signage Backlighting
- Cove Lighting, Closet Illumination
- Concealed Accent Lighting, Edge Lighting
Specifications
| Web Description | LED T8 Tube Light, 18W, T8 2-Pin (G13), Frosted, 48.00"Lx1.09"D, Natural White, 24-72Vdc |
|---|---|
| Dimensions | 48.00"Lx1.09"D |
| Color | Natural White |
| Color Temp | 4000K |
| Lens | Frosted |
| Voltage (V) | 24-72Vdc |
| Power (Watts) | 18W |
| Current (Amps) | 0.71 to 0.243 A |
| Operating Temp | ~-20°C to ~+55°C |
| Intensity (Candela) | |
| Lumens | 2,400 lm |
| CRI | |
| Viewing Angle | 115° x 140° |
| Electrical-Optical Characteristics (Ta = 25°C) | |
Prop. 65 Warning
