Home > Products > LEDG12-15W-XPW-101A
Part #: LEDG12-15W-XPW-101A
(100-277Vac,15W,6000K,G12 BI-PIN)

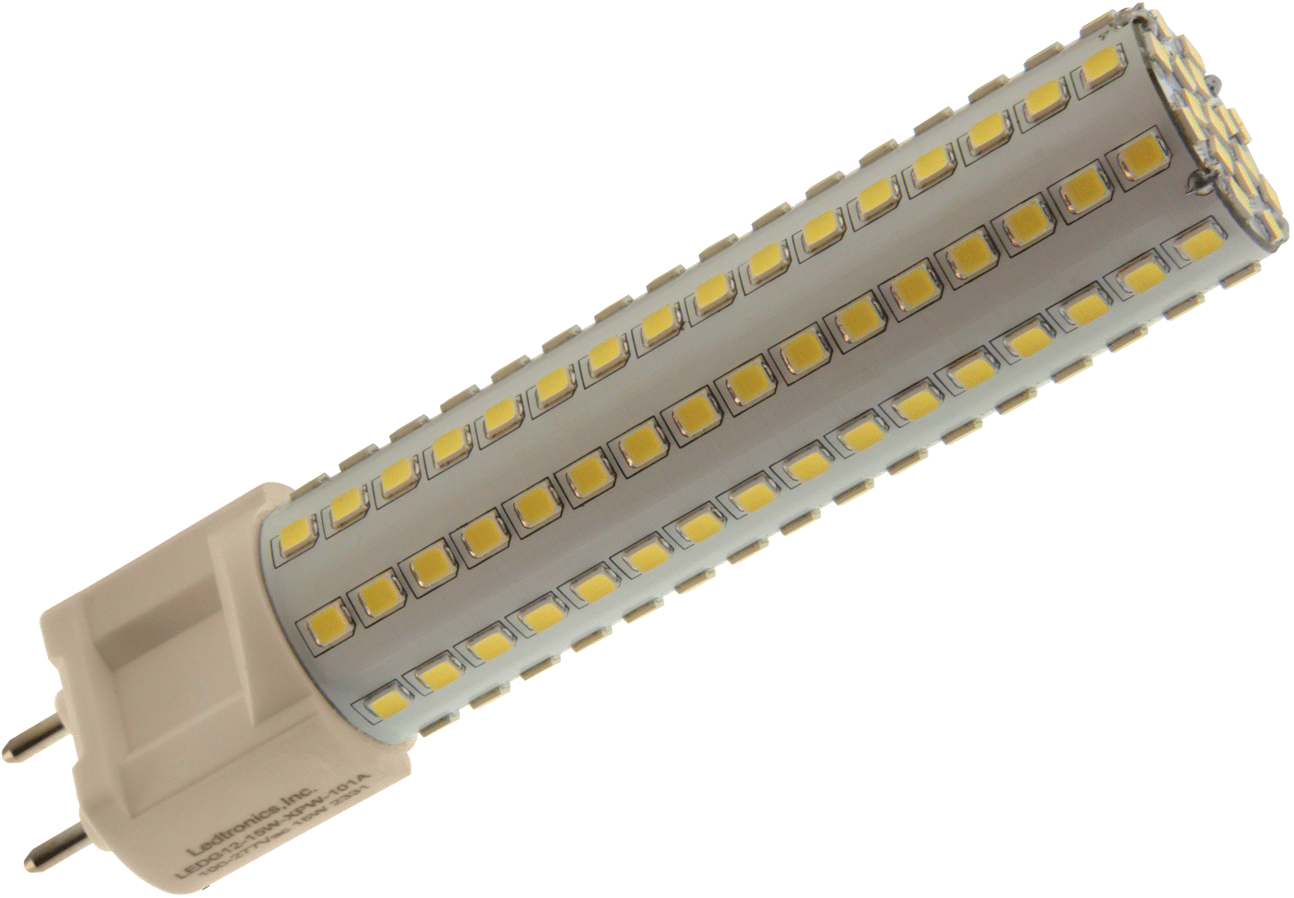

LED CFL Lamp, G12 BiPin Base, 5.12"Lx1.18"D, 100-277Vac, Pure White13 W, 360° Beam Angle, High lumen 2835 SMD LEDsReplace 30Watt G12 Metal Halide / Halogen Lamp (MHL/HPS/HID)
13 W, 360° Beam Angle, High lumen 2835 SMD LEDsReplace 30Watt G12 Metal Halide / Halogen Lamp (MHL/HPS/HID)
Replace 30Watt G12 Metal Halide / Halogen Lamp (MHL/HPS/HID)
| Replaces Incandescent/LED: | 35W GE 76121, PHILIPS CDMT35, OSRAM HCI-T 35W, SYLVANIA 64325 |
Features
- 3 Year LEDtronics Warranty
- Replaces G12 based bulbs with ballast bypass when appropriate
- Universal Burn Position
- Lumen Maintenance over 70% @ 50,000+ Hours
- Stable lamp operation without flicker — using isolated driver, constant current, & Rubycon capacitor.
- No UV / Low IR / No RF Interference
- High Color Rendering Index >83 CRI
- Wide Illumination Angle of 360°
- 40+ Years LEDtronics Design & Manufacturing
Choose Options:
Power OptionsColor Options
Applications
- Replaces Philips CDM-T Metal Halide G12 Lamps
- Indoor Decorative Lighting
- Globes, Lanterns, Street, Warehouse, Garage Lighting
- Hotels, Restaurants
- Security Lights
- Offices
- Museums & Galleries
- Theatrical Effects Lighting
Specifications
| Base Type | G12 BiPin |
|---|---|
| Color | Pure White |
| Color Temp | 6000K |
| Lens | (no lens cover) |
| Voltage (V) | 120Vac |
| Power (Watts) | 13 W |
| Wattage Equivalent | 35W GE 76121, PHILIPS CDMT35, OSRAM HCI-T 35W, SYLVANIA 64325 |
| Current (Amps) | 0.106 A |
| Operating Temp | ~-20°C to ~+40°C, UL damp listed |
| Power Factor | 0.99 |
| Efficacy | 153 |
| Intensity (Candela) | 216 cd (max) |
| Lumens | 1960 lm |
| CRI | >83 |
| Viewing Angle | 360° |
| Electrical-Optical Characteristics (Ta = 25°C) | |
Possible Options
- Additional Color Temperatures; 2700K, 3000K, 4000K, >6000K
- Other Voltages
- Fixed Voltage with Dimming
Caution
- Not for use with dimmers
- Operates on 100~277Vac. Bypass any ballast, starter, or ignitor that existed with the previous installation
- Suitable for use in open fixtures
- Surge Protection Recommended
White LED technology is patent protected in the US. LEDtronics White LED products are covered under these patents.
Prop. 65 Warning
