Home > Products > LEDG24QBB-12WH-XNW-101A
Part #: LEDG24QBB-12WH-XNW-101A
(120-277Vac,4100K,G24q 4Pin,Ball,Byps)

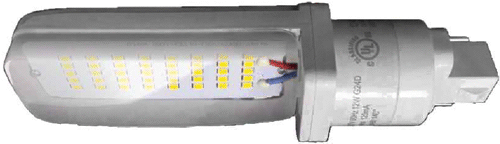

LED CFL Lamp, G24q (4-Pin), Natural White, 120-277Vac, 11W, Ballast BypassedHorizontal (Right-Angled) Configuration — 6" Can Ceiling LightingFor installations where the lamp is oriented horizontally, with light beaming downward
Horizontal (Right-Angled) Configuration — 6" Can Ceiling LightingFor installations where the lamp is oriented horizontally, with light beaming downward
For installations where the lamp is oriented horizontally, with light beaming downward
Choose Options:
Voltage OptionsPower (nominal) OptionsBase Type OptionsBallast OptionsLens Options
Specifications
| Web Description | LED CFL Lamp, G24q (4-Pin), 5.82"Lx1.40"SQ, Natural White, 120-277Vac, 11W,Ballast Bypassed |
|---|---|
| Base Type | G24q (4-Pin) |
| Color | Natural White |
| Color Temp | 4000K |
| Lens | Frosted |
| Voltage (V) | 120-277Vac |
| Power (Watts) | 11W |
| Current (Amps) | 0.090 A |
| Operating Temp | ~-20°C to ~+40°C |
| Power Factor | |
| Efficacy | |
| Intensity (Candela) | 440 cd |
| Lumens | 1,430 lm |
| CRI | |
| Viewing Angle | 140° |
| Electrical-Optical Characteristics (Ta = 25°C) | |
White LED technology is patent protected in the US. LEDtronics White LED products are covered under these patents.
