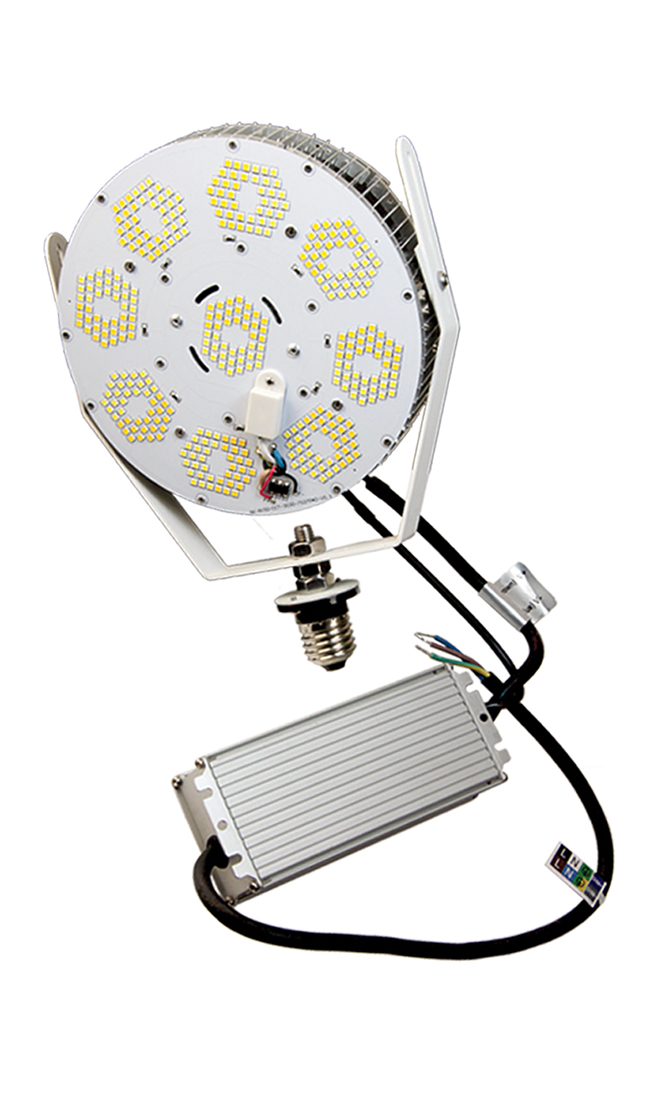

Part #: LEDRK01B-060150W-3050-101  (**100-277Vac,Pwr Tuning, CCT Tuning)

Tunable LED Retrofit Kit: Roadway/High & Low Bay/ Flood; E26 Base (E39 Adapter Included)

Tunable Wattage: 60W/100W/120W/150W
Tunable Color Temp.: 3000K/4000K/5000K

100~277Vac, 115° x 115° — 115° x 120° beam angle

LED/Incandescent Cross Reference Tool

Features
  • 5 Year LEDtronics Warranty
  • Tunable Wattage: 60W/100W/120W/150W
  • Tunable Color Temp.: 3000K/4000K/5000K
  • E26 Base (E39 Adapter Included), 360° Rotatable
  • Input Voltage: 100~277Vac. 200~480Vac available.
  • ETL/cETL Listed (4010207 / BB-SDD-150W-D1-MWCT)
  • Die-Cast Aluminum Heat Sink, Aluminium Alloy
  • Energy Savings of up to 70% over HID Lamps
  • No UV/IR Radiation, No RF Interference, Minimal Heat, No Toxic Metals



Choose Options:

Power Options
Voltage Options

Spec Sheets






  • Installation Instructions
  • Installation Instructions:
    Installation Instructions

    For best results print pdf files in Adobe Acrobat reader.

    Applications

    • Replaces Existing MH/HPS/HID/MHL/CFL
    • Lamps without Changing Most Fixtures
    • High Bay Lighting: Factories, Warehouses
    • Indoor Arenas, Convention Centers
    • Shoeboxes: Parking Lots, Depots
    • Area Floodlights, Security Lighting
    • Canopy Lights, Wall Washing
    • Driveway & Walkway Lighting

    Specifications

     Web DescriptionLED Area Retrofit Kit, 60W/100W/120W/150W Tunable, E26 Base (E39 Adapter Included), 3000K/4000K/5000K Tunable, 100-277Vac
     ColorTunable CCT White
     Color Temp3000K/4000K/5000K CCT
     Voltage (V)100-277Vac
     Power (Watts)60W/100W/120W/150W
     Current (Amps)
     Operating Temp
     Efficacy
     Intensity (Candela)
     Lumens
     CRI
     Viewing Angle
     Weight (approx)
    Electrical-Optical Characteristics (Ta = 25°C)
