Home > Products > LLA24-024W-3550K-101D-W-W-1
Part #: LLA24-024W-3550K-101D-W-W-1
(100-277Vac,24W,CCTTng,FLT Lens,FRS)

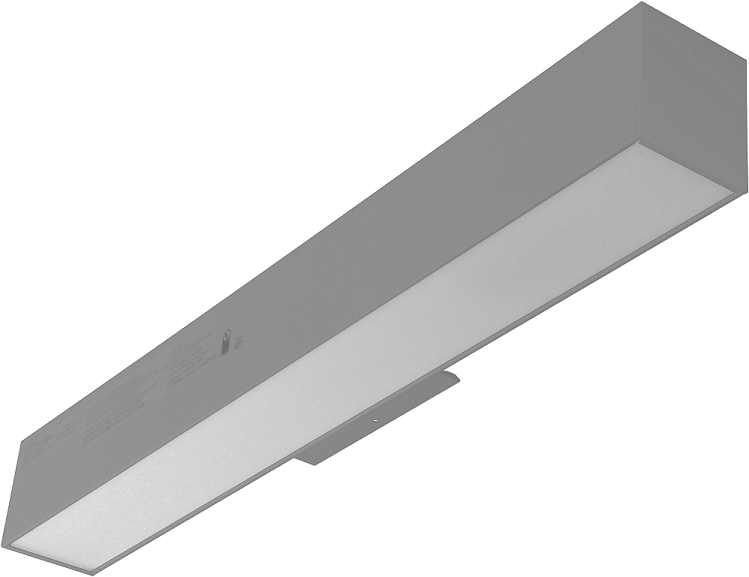

LED Linear Light, Wall or Ceiling Mount Bracket, 3500K to 5000K, 100-277Vac, 24 WLight Distribution: Adjustable Up & Down Lighting, White, Tunable Color TempIP20 Indoor Use, Microwave Sensor, 0-10V Dimmable
Features• Lumen Maintenance over 70% @ 50,000+ Hours
• Adjustable White Color Temperature: 3500K, 4000K & 5000K,
with Both Uplight and Downlight Controlled Separately
• Features Microwave Sensor / Dimmable 0-10V
• Pendant Light with Both Direct & Indirect Lighting
• Can Be Mounted in Continuous, Seamless Runs to any Length
• Selectable Up, Down or Up-&-Down Illumination
• Lightweight, Durable Aluminum Housing
• Unique End Cap Simplifies Installation
• PS Frosted Diffuser Eliminates Glare
• Mounting Hardware for Wall, Ceiling or Suspended Mounting
• No Buzzing, No Flickering – Unlike Fluorescent Tubes
• No UV/IR Radiation, No RF Interference
Price: $172.18 each | Min Qty: 1
Light Distribution: Adjustable Up & Down Lighting, White, Tunable Color TempIP20 Indoor Use, Microwave Sensor, 0-10V Dimmable
Features• Lumen Maintenance over 70% @ 50,000+ Hours
• Adjustable White Color Temperature: 3500K, 4000K & 5000K,
with Both Uplight and Downlight Controlled Separately
• Features Microwave Sensor / Dimmable 0-10V
• Pendant Light with Both Direct & Indirect Lighting
• Can Be Mounted in Continuous, Seamless Runs to any Length
• Selectable Up, Down or Up-&-Down Illumination
• Lightweight, Durable Aluminum Housing
• Unique End Cap Simplifies Installation
• PS Frosted Diffuser Eliminates Glare
• Mounting Hardware for Wall, Ceiling or Suspended Mounting
• No Buzzing, No Flickering – Unlike Fluorescent Tubes
• No UV/IR Radiation, No RF Interference
Price: $172.18 each | Min Qty: 1
IP20 Indoor Use, Microwave Sensor, 0-10V Dimmable
Features• Lumen Maintenance over 70% @ 50,000+ Hours
• Adjustable White Color Temperature: 3500K, 4000K & 5000K,
with Both Uplight and Downlight Controlled Separately
• Features Microwave Sensor / Dimmable 0-10V
• Pendant Light with Both Direct & Indirect Lighting
• Can Be Mounted in Continuous, Seamless Runs to any Length
• Selectable Up, Down or Up-&-Down Illumination
• Lightweight, Durable Aluminum Housing
• Unique End Cap Simplifies Installation
• PS Frosted Diffuser Eliminates Glare
• Mounting Hardware for Wall, Ceiling or Suspended Mounting
• No Buzzing, No Flickering – Unlike Fluorescent Tubes
• No UV/IR Radiation, No RF Interference
Price: $172.18 each | Min Qty: 1
Choose Options:
Voltage OptionsColor OptionsBase Type OptionsDimensions Options
Specifications
| Web Description | LED Linear Light, Wall or Ceiling Mount Bracket, 24"Lx2.99"H, 3500K to 5000K, 100-277Vac, 24 W,Dimmable |
|---|---|
| Length | |
| Color | 3500K to 5000K |
| Wavelength (nm) | |
| Lens | Frosted White |
| Voltage (V) | 100-277Vac |
| Power (Watts) | 24 W |
| Current (Amps) | |
| Operating Temp | -20°C to +45°C |
| Power Factor | |
| Efficacy | |
| Intensity (Candela) | |
| Lumens | 3000 lm |
| CRI | 80 |
| Viewing Angle | 110° |
| Electrical-Optical Characteristics (Ta = 25°C) | |
