Home > Products > LLL02-3060WF-3550-101D-MWS


Part #: LLL02-3060WF-3550-101D-MWS  (***120-277Vac,CT,3500,4000,5000K,DIM,FRS)

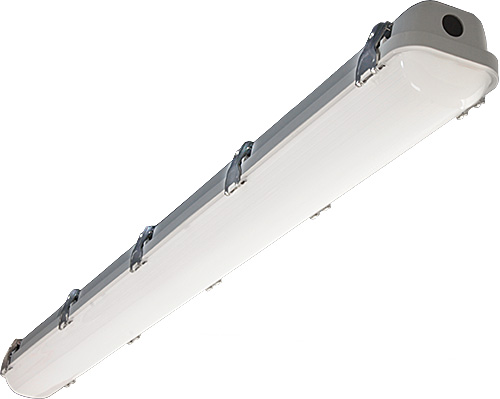

LED Linear Canopy Luminaire, 3500K~5000K, 120-277Vac, 30/45/60W, Dimmable

Microwave Sensor, Wet Locations, Lens
0–10V Dimmable

Wall Mounting, Ceiling Mounting, or Suspended Mounting
Features
  • 5 Year LEDtronics Warranty
  • Tunable: Selection of 3500K Medium White, 4000K Natural White, 5000K Pure White
  • Selection of 30 Watts, 45 Watts, or 60 Watts
  • Nine stock keeping units in one luminaire saves inventory
  • Integrated design: LED plate bonded to PC cover
  • Easier installation. Timely wiring saves time.
  • Advanced housing slot designs for surface mounting or junction box bracket cover.
  • Tamperproof mounting installation options.
  • Lumen maintenance over 70% @ 50,000+ hours
  • Operates on 120~277VAC
  • Lightweight, flexible & durable polycarbonate housing provides resistance to vandalism, high impact & shock
  • Stainless steel mounting hardware for wall, ceiling or suspended mounting
  • Silicon gasket, closure clips securely, evenly seals luminaire
  • PC diffuser eliminates glare — Integrated with crystals that enhance even light distribution / No buzzing, No flickering
  • No UV/IR radiation, No RF interference
  • RoHS compliant — No toxic mercury
  • See instructions for daisy-chain maximums
  • 40+ Years LEDtronics Design & Manufacturing



Choose Options:

Voltage Options
Power Options
Color/Temp Options
Dimensions Options
NSN Button Cross Reference Tool

Spec Sheets




Applications

  • Stairwells
  • Production Areas
  • Canopies
  • Warehouse & Workshop Lighting
  • Food Processing Facilities
  • Equestrian Facilities / Farmyards
  • Parking Areas & Garages
  • Tunnels, Bridges

Specifications

 Web DescriptionLED Linear Canopy Luminaire, 46.85"Lx4.17"Wx3.35"H, 3500K-5000K, 120-277Vac, 30/45/60W, Dimmable
 Color3500K~5000K
 Wavelength (nm)3500~5000K CCT
 Voltage (V)120-277Vac
 Power (Watts)30/45/60 W
 Current (Amps)0.254~0.494 A
 Operating Temp~-40° to ~+45°C
 Power Factor
 Efficacy
 Intensity (Candela)1,353~2,458 cd
 Lumens4,746~8,715 Im
 CRI
 Viewing Angle110° x 130°
Electrical-Optical Characteristics (Ta = 25°C)


Prop. 65 Warning
 WARNING: This product can expose you to chemicals including Di(2-ethylhexl)pthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
