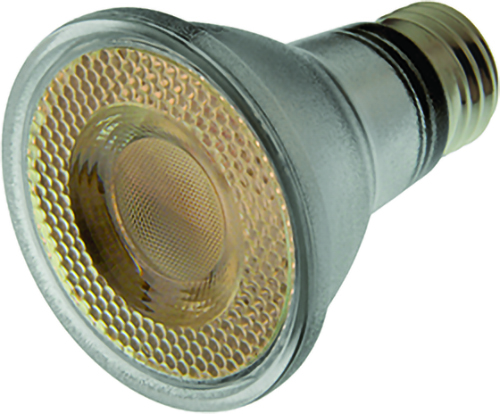

Part #: PAR20C-7WP-XPW-101S

LED Bulbs, PAR20 Spotlight, Pure White, 100-277Vac, Edison Screw E26 (25mm)

Clear Prismatic Lens, Angle of Illumination: 35°,
Non-Dimmable


Replaces Incandescent/LED:Replaces Up to 50W Halogen, Flood 36 Beam, Indoor Use

Features
  • Energy Savings of up to 85% over Halogens
  • Lumen Maintenance over 70% @ 15,000+ Hrs
  • Direct Retrofit into E26 Screw Base Fixtures
  • Suitable for Wet Locations
  • High CRI, High Lumen COB LEDs
  • RoHS Compliant
  • Even Lighting, No Buzzing, No Flickering
  • No UV/IR Radiation, No Toxic Mercury or Lead

  •


    Spec Sheets




    Specifications

     Web Descriptionx
     Description40Vdc,P.White,Ba15D Base
     Base TypeDouble Contact DC Bayonet Ba15d
     Dimensions
     ColorPure White
     Color Temp4800K to 5200K
     Voltage (V)32-40Vdc
    (Tested@40Vdc)
     Power (Watts)2.0 W
     Current (Amps)0.051 A
     Operating Temp~-30°C to ~+50°C
     Intensity (Candela)39.0 cd
     Lumens
     SCP (Spherical Candela)
     Viewing Angle38°radial, 29° cl
    Electrical-Optical Characteristics (Ta = 25°C)


    Prop. 65 Warning
    WARNING: This product can expose you to chemicals including Di(2-ethylhexl)pthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
