Part #: PCS170TR5

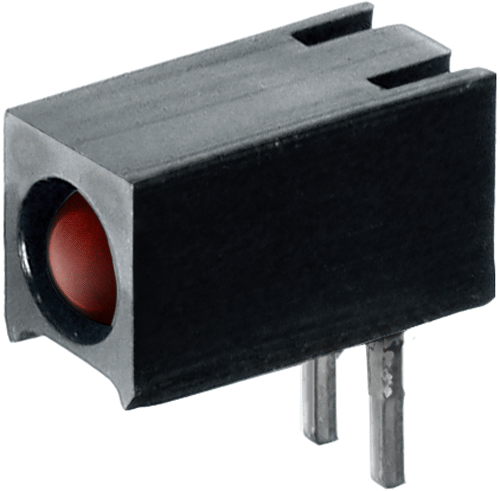

(3mm,Rt.Angle,Lo-Dome,Red)
PC Board LED, 3mm Lo-Dome Diffused, 3mm Right Angle 0.15" Proj, RedSingle Level, 0.170"Wx0.200"Hx0.343"L, for Backlighting
Single Level, 0.170"Wx0.200"Hx0.343"L, for Backlighting
| Replaces Incandescent/LED: | Dialight 551-xx02 & 551-22xx-100, 551-0001-86X, 551-3102, Kingbright L934GF, Lite-On LTL-14CHJ |
Choose Options:
Base Type OptionsColor OptionsLens OptionsDimensions Options
Spec Sheets
Specifications
| Web Description | PC Board LED, 3mm Lo-Dome Diffused, 3mm Right Angle 0.15" Proj, 0.170"Wx0.200"Hx0.343"L, Red |
|---|---|
| Description | 3mm,Rt.Angle,Lo-Dome,Red |
| Dimensions | 0.170"Wx0.200"Hx0.343"L |
| Color | R 1-Level |
| λp, nm | 635nm |
| Lens | Diffused |
| Voltage (V) | ~2.0 to ~2.2Vf |
| Power (Watts) | |
| Current (Amps) | 0.02A |
| Operating Temp | ~-30°C to ~+50°C |
| Intensity (Candela) | |
| Viewing Angle | ~45° to ~55° |
| Electrical-Optical Characteristics (Ta = 25°C) | |
