Home > Products > PCT200TR5A-140

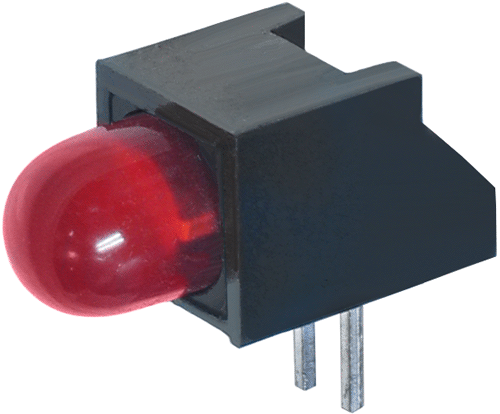

Part #: PCT200TR5A-140
(5mm,Dome,Diffused,Rt,Angle,Red)
PC Board LED, 5mm Diffused Dome, Right Angle, RedHi-Efficiency, 0.125" LED Centerline, Diffused LensDirect Cross to Dialight 550-xx06 & 550-xx07, CM/IDI 5300, DDP PCL200
Features- 3 Year LEDtronics Warranty
- Solid-State, Long Life
- Printed Circuit Board mounted LED Status Indicator
- Direct Cross to Dialight, CML, IDI, VCC, DDP, Lumex
- Choice of other standard LED Colors in Diffused or Clear
- Choice of Hi-Efficiency or Ultra-Bright Intensities
- Volume Discount Price available. Contact Sales
- 40+ Years LEDtronics Design & Manufacturing
Price: $1.12 each | Min Qty: 500
Hi-Efficiency, 0.125" LED Centerline, Diffused LensDirect Cross to Dialight 550-xx06 & 550-xx07, CM/IDI 5300, DDP PCL200
Features- 3 Year LEDtronics Warranty
- Solid-State, Long Life
- Printed Circuit Board mounted LED Status Indicator
- Direct Cross to Dialight, CML, IDI, VCC, DDP, Lumex
- Choice of other standard LED Colors in Diffused or Clear
- Choice of Hi-Efficiency or Ultra-Bright Intensities
- Volume Discount Price available. Contact Sales
- 40+ Years LEDtronics Design & Manufacturing
Price: $1.12 each | Min Qty: 500
Direct Cross to Dialight 550-xx06 & 550-xx07, CM/IDI 5300, DDP PCL200
Features
- 3 Year LEDtronics Warranty
- Solid-State, Long Life
- Printed Circuit Board mounted LED Status Indicator
- Direct Cross to Dialight, CML, IDI, VCC, DDP, Lumex
- Choice of other standard LED Colors in Diffused or Clear
- Choice of Hi-Efficiency or Ultra-Bright Intensities
- Volume Discount Price available. Contact Sales
- 40+ Years LEDtronics Design & Manufacturing
Price: $1.12 each | Min Qty: 500
Specifications
| Web Description | PC Board LED, 5mm Dome Diffused, 5mm Right Angle, 0.25"Wx0.25"H, Red,0.125" LED Centerline |
|---|---|
| Description | 5mm,Dome,Diffused,Rt,Angle,Red |
| Dimensions | 0.25"Wx0.25"H |
| Color | Red |
| λp, nm | 635nm |
| Lens | Diffused |
| Voltage (V) | 2.0Vf |
| Power (Watts) | |
| Current (Amps) | |
| Operating Temp | -40°C~+85°C |
| Intensity (Candela) | |
| Viewing Angle | ~45° to ~55° |
| Electrical-Optical Characteristics (Ta = 25°C) | |
