Home > Products > PP251TR3K-24V-W6
Part #: PP251TR3K-24V-W6

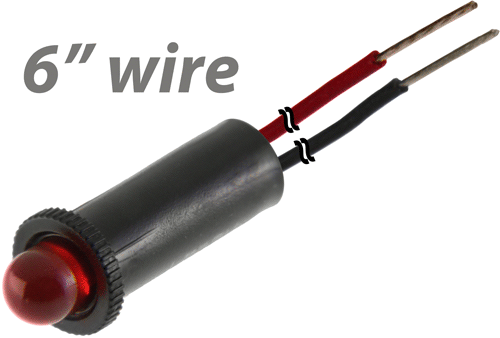

LED Indicators, Panel Mount, Snap-In Style, Mtg.Dia 1/4" (6.4mm)Mounting Diameter 1/4" (6.4mm), 24Vdc, Ultra RedRed diffused dome, 1/4" Mtg.Dia, 6" Wire Leads
Mounting Diameter 1/4" (6.4mm), 24Vdc, Ultra RedRed diffused dome, 1/4" Mtg.Dia, 6" Wire Leads
Red diffused dome, 1/4" Mtg.Dia, 6" Wire Leads
| Replaces Incandescent/LED: | Direct Cross to Dialight 559 Series, Chicago Miniature/IDI 5100Series |
Features
- 3 Year LEDtronics Warranty
- Color tinted, diffused dome lens.
- Solid-State: High-Shock- & High-Vibration-Resistant
- Wide Ambient Operating Temp. Range: ~-22°F to ~+122°F [~-30°C to ~+50°C]
- Relative Humidity: Rated for operation in non-condensing relative humidities between 5% and 95%
- Panel Thickness from 0.031 (0.8mm) to 0.250 (6.4mm)
- Sleeve is machined Black Nylon 66
- 12-inch, 24G UL1061 wire leads
- 40+ Years LEDtronics Design & Manufacturing
Price: $18.90 each | Min Qty: 25
Specifications
| Description | |||
|---|---|---|---|
| Base Type | 1/4" Mtg.Dia, 6" Wire Leads | ||
| Dimensions | |||
| Color | Ultra Red | ||
| λp, nm | 657nm | ||
| Lens | Red diffused dome | ||
| Lens Cap Color | |||
| Voltage (V) | 24Vdc | ||
| Power (Watts) | 0.3W | ||
| Current (Amps) | 0.012 A | ||
| Operating Temp | -30°C to +50°C | ||
| Intensity (Candela) | 0.220 cd | ||
| Viewing Angle | 30° | ||
| Electrical-Optical Characteristics (Ta = 25°C) | |||
Possible Options
-
For volume orders and qualified applications this Series item can be manufactured to your specifications. Please email or call LEDtronics, (800) 579-4875.
- Other colors available.
- AC Types available for OEM applications.
- Other Voltages available for OEM applications.
- Panel Thickness from 0.031 (0.8mm) to 0.250 (6.4mm).
- Other Voltages available. No resistor version also available.
- Other angles of illumination available.
- For reducing battery drain, low-current versions available.
- Longer lead lengths 12" (30.5cm), 24" (61cm) & 36" (91cm) available.
-
Option with terminals
Caution
- Not for dimming applications
Prop. 65 Warning
