Part #: PT302T-0UY-028V-T
(24/28Vdc,Sp.Yellow,Diff,Lead Terminal)

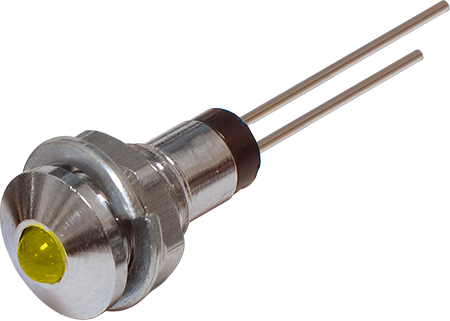

Panel Mount LED, Conical, 1/4" Mtg.Dia, Lead Terminal, 28Vdc, Super YellowUltra-Bright, Bolt-On Style, Clear & Diffused Dome Lens, Chrome Bezel
Ultra-Bright, Bolt-On Style, Clear & Diffused Dome Lens, Chrome Bezel
| Replaces Incandescent/LED: | Dialight 606-1xxx, 2xxx, Lumens SSI-LX3612, DDP, VCC |
Features
- 3 Year LEDtronics Warranty
- Long Life. Energy Savings. Low Heat. Shock/Vibration Resistant
- Recommended panel thickness: 0.125". [3.17mm]
- Mounting panel hole size: 0.250" [6.35mm]
- Ultra-Bright 3mm Diffused Dome LEDs. Clear Lens Options
- Shrouded versions available. See PT301 Series
- Available with Other Wire Lead Lengths
- Custom Voltages for high volume OEM requirements
- Volume discounted Price available. Contact Sales
- 40+ Years LEDtronics Design & Manufacturing
Choose Options:
Voltage OptionsColor OptionsLens OptionsBase Type OptionsDimensions Options
Specifications
| Web Description | Panel Mount LED Indicator, 3mm Dome Diffused, Conical, 1/4" Mtg.Dia, Lead Terminal, 0.65"Lx0.315"D, Super Yellow, 28Vdc | ||
|---|---|---|---|
| Description | 24/28Vdc,Sp.Yellow,Diff,Lead Terminal | ||
| Dimensions | 0.65"Lx0.315"D | ||
| Color | Super Yellow | ||
| Wavelength (nm) | 595nm | ||
| Lens | 3mm Dome Diffused | ||
| Lens Cap Color | |||
| Voltage (V) | 24/28Vdc | ||
| Power (Watts) | |||
| Current (Amps) | |||
| Operating Temp | ~-30°C to ~+50°C | ||
| Intensity (Candela) | |||
| Lumens | |||
| SCP (Spherical Candela) | |||
| Viewing Angle | ~45° | ||
| Electrical-Optical Characteristics (Ta = 25°C) | |||
