Part #: RDL36S-8-12W-XPW-101WD
(***100-277Vac,12W,5000K,8", DIM)

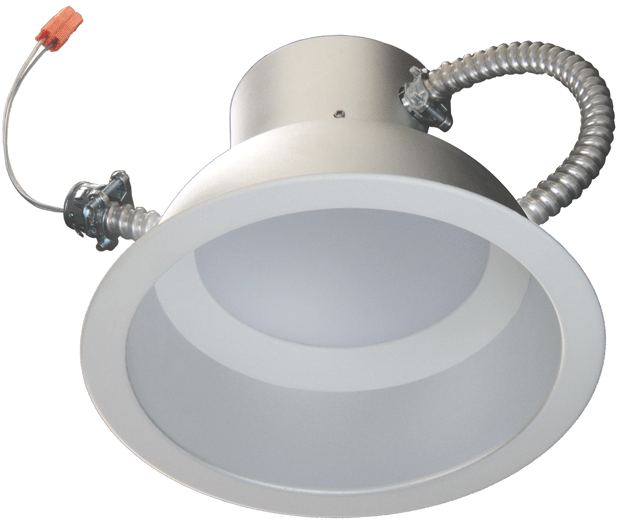

Recessed Retrofit LED Downlight, Dimmable, 12 WattsReplaces Halogens Up to 6?5W
Fits Most 5-inch & 6-inch Aperture Recessed Housings, 90° Beam100 to 277Vac, 'Halogen' White 2800K, J-Box Connect
Features- 5 Year LEDtronics Warranty
- Replaces Traditional 8" CFL,HID or Incandescent Down Lights.
- Energy Savings of up to 80%
- Diffused, Even Lighting
- IC Type, Damp Locations
- White External Finish
- Snap-on Connector
- Lumen Maintenance over 70% @ 50,000+ Hours
- Dimmable to 5% with Most Lutron and Leviton 0-10V Dimmers
- No UV/IR Radiation, No Toxic Mercury, RoHS Compliant
- 40+ Years LEDtronics Design & Manufacturing
Replaces Halogens Up to 6?5W
Fits Most 5-inch & 6-inch Aperture Recessed Housings, 90° Beam100 to 277Vac, 'Halogen' White 2800K, J-Box Connect
Features- 5 Year LEDtronics Warranty
- Replaces Traditional 8" CFL,HID or Incandescent Down Lights.
- Energy Savings of up to 80%
- Diffused, Even Lighting
- IC Type, Damp Locations
- White External Finish
- Snap-on Connector
- Lumen Maintenance over 70% @ 50,000+ Hours
- Dimmable to 5% with Most Lutron and Leviton 0-10V Dimmers
- No UV/IR Radiation, No Toxic Mercury, RoHS Compliant
- 40+ Years LEDtronics Design & Manufacturing
100 to 277Vac, 'Halogen' White 2800K, J-Box Connect
Features
- 5 Year LEDtronics Warranty
- Replaces Traditional 8" CFL,HID or Incandescent Down Lights.
- Energy Savings of up to 80%
- Diffused, Even Lighting
- IC Type, Damp Locations
- White External Finish
- Snap-on Connector
- Lumen Maintenance over 70% @ 50,000+ Hours
- Dimmable to 5% with Most Lutron and Leviton 0-10V Dimmers
- No UV/IR Radiation, No Toxic Mercury, RoHS Compliant
- 40+ Years LEDtronics Design & Manufacturing
Specifications
| Color | Pure White |
|---|---|
| Color Temp | 5000K |
| Voltage (V) | 100~277Vac (Tested@120Vac) |
| Power (Watts) | 11.6W |
| Current (Amps) | 0.205 A |
| Operating Temp | ~-1?0°C to ~+45°C, Damp Locations Rated |
| Power Factor | 1 |
| Efficacy | 97 |
| Intensity (Candela) | 626 cd |
| Lumens | 1127 lm |
| CRI | 80 |
| Viewing Angle | 85° |
| Electrical-Optical Characteristics (Ta = 25°C) | |
Possible Options
- 2700K, 3000K, 4000K Color Temperatures Available
- Silver External Finish Available
- 8" Housing Frames Available
