Home > Products > RNLD02SM-0PW-120A-100FT-SC
Part #: RNLD02SM-0PW-120A-100FT-SC
(120Vac,White, )
Flexible Surface Mount LED Neon Rope, IP65, 120VACUltra-Bright, Diffused Wide Angle Viewing, Linear Edge LightingSchlinder Part# CLQ12616
Features- 1 Year LEDtronics Warranty
- Dimmable with Certain Installations (See the Caution button)
- Fast Field Installation without the Specialized Labor Required for Neon
- Provided with Thirty 2-inch Mounting Clips, Each Fastened with a Pair of 5/8" Screws
- Far Less Subject to Damage During Installation and Operation
- No Environmentally Hazardous Substances Such as Mercury
- Indoor/Outdoor Use
- PVC Material is UV Protected
- Low Power Consumption: 9.6 watts per meter
- Long Life: 50,000+ Hours
- IP65* Protection Rating as sold with end cap and plug-in power feed
- Smallest Bend Radius: 1.5 inch [40mm]
- 40+ Years LEDtronics Design & Manufacturing
Price: $1,005.83 each | Min Qty: 30
Ultra-Bright, Diffused Wide Angle Viewing, Linear Edge LightingSchlinder Part# CLQ12616
Features- 1 Year LEDtronics Warranty
- Dimmable with Certain Installations (See the Caution button)
- Fast Field Installation without the Specialized Labor Required for Neon
- Provided with Thirty 2-inch Mounting Clips, Each Fastened with a Pair of 5/8" Screws
- Far Less Subject to Damage During Installation and Operation
- No Environmentally Hazardous Substances Such as Mercury
- Indoor/Outdoor Use
- PVC Material is UV Protected
- Low Power Consumption: 9.6 watts per meter
- Long Life: 50,000+ Hours
- IP65* Protection Rating as sold with end cap and plug-in power feed
- Smallest Bend Radius: 1.5 inch [40mm]
- 40+ Years LEDtronics Design & Manufacturing
Price: $1,005.83 each | Min Qty: 30
Schlinder Part# CLQ12616
Features
- 1 Year LEDtronics Warranty
- Dimmable with Certain Installations (See the Caution button)
- Fast Field Installation without the Specialized Labor Required for Neon
- Provided with Thirty 2-inch Mounting Clips, Each Fastened with a Pair of 5/8" Screws
- Far Less Subject to Damage During Installation and Operation
- No Environmentally Hazardous Substances Such as Mercury
- Indoor/Outdoor Use
- PVC Material is UV Protected
- Low Power Consumption: 9.6 watts per meter
- Long Life: 50,000+ Hours
- IP65* Protection Rating as sold with end cap and plug-in power feed
- Smallest Bend Radius: 1.5 inch [40mm]
- 40+ Years LEDtronics Design & Manufacturing
Price: $1,005.83 each | Min Qty: 30
Choose Options:
Color Options
Applications
- Outdoor or Indoor Use
- Safe Alternative for Glass Neon Tube Lights
- Signage Letters or Store Fronts
- Perimeter or Border Lighting
- Safe Alternative for Glass Neon Tube Lights
- Outlining Buildings, Counters, Walkways, Landscaping, Gardens, Decks, Cabinets, Furniture
Specifications
| Web Description | Low-Profile Shoebox Area Luminaire, Mounting Bracket Slipfitter For 60mm Pole, Pure White, 100-277Vac, 300 WW |
|---|---|
| Color | Pure White |
| Color Temp | 5000K |
| Voltage (V) | 100-277Vac |
| Power (Watts) | 300 W |
| Wattage Equivalent | Replaces Up to 1000W MH/HPS |
| Current (Amps) | |
| Operating Temp | -30°C to +45°C, IP65 |
| Power Factor | 0.9 |
| Efficacy | 130 |
| Intensity (Candela) | |
| Lumens | 39,000 lm |
| CRI | 70 |
| Viewing Angle | 120° |
| Illum Pttrn | Type V (Circular) |
| Electrical-Optical Characteristics (Ta = 25°C) | |
Caution
- To Retain IP65 Water Seal Quality: Applying cuts, splices, and end caps to the unaltered LED rope 100-foot length is dependent upon the LED rope splicing and sealing skills of the installer and adherence to the instructions.
- The LED neon rope cannot be handled like a garden hose. Avoid excessive pulling, bending, or torquing stresses to the wiring while handling.
- WHILE COILED ON ITS SPOOL: Do not illuminate the coiled neon rope for long periods of time because getting the coiled rope too warm can damage the circuitry. Only momentary quick lightups of room-temperature coiled rope are permissible to check function.
- Do not apply tighter bends than those described in the instructions.
- Precautions when using a triac dimmer:
1. Rope lights are directly plugged into an outlet. The outlet must be dedicated just for the rope light, especially if it is to be controlled by a triac dimmer.
2. A 100-ft / 30m rope light is equivalent to about 280W at 9.2w/m per our specs. The maximum rating of a triac dimmer currently available is only rated 250W. Using it might overheat and eventually burn the dimmer. Therefore, it is not advisable to use a dimmer for the 100-ft rope light, unless the dimmer has a rating of at least 280W.
3. Shorter lengths of rope lights, rated 250W or less are compatible with triac dimmers but must use a dedicated outlet to plug it in. - Only complete factory-assembled (with plug-in power cable and uncut) LED neon rope lights are ETL Listed. ETL Listing is voided once any modification is made, though modifications are safe if altered by qualified electricians.
For Quantity Orders and Qualified Applications
|
|

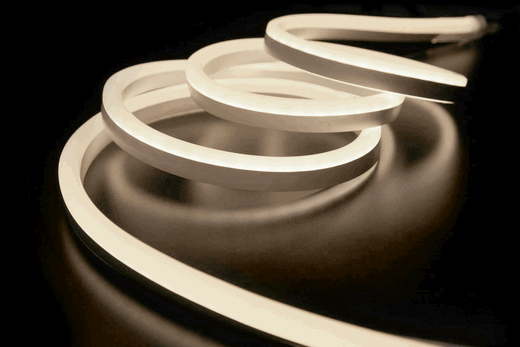

Warm White

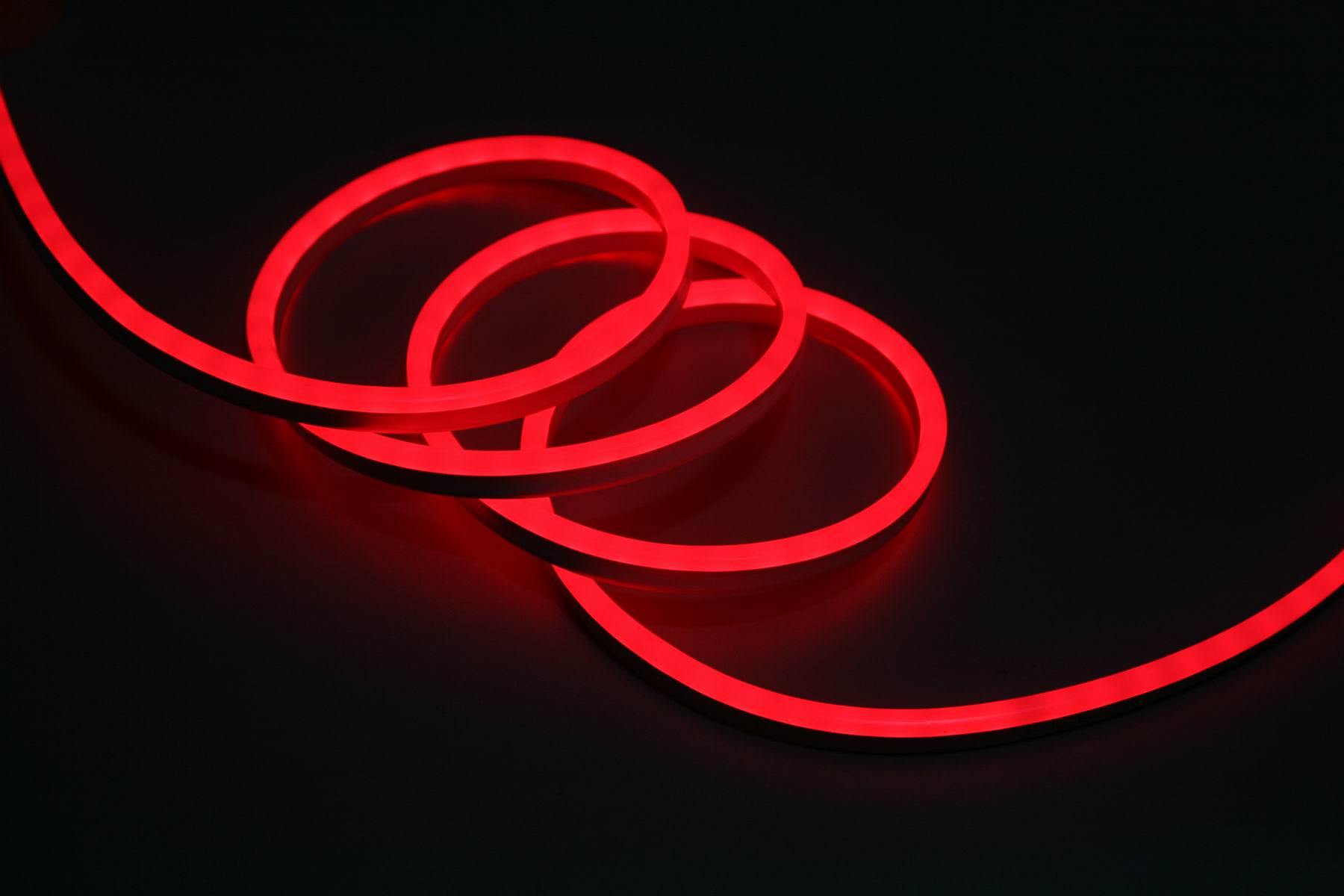

Super Red

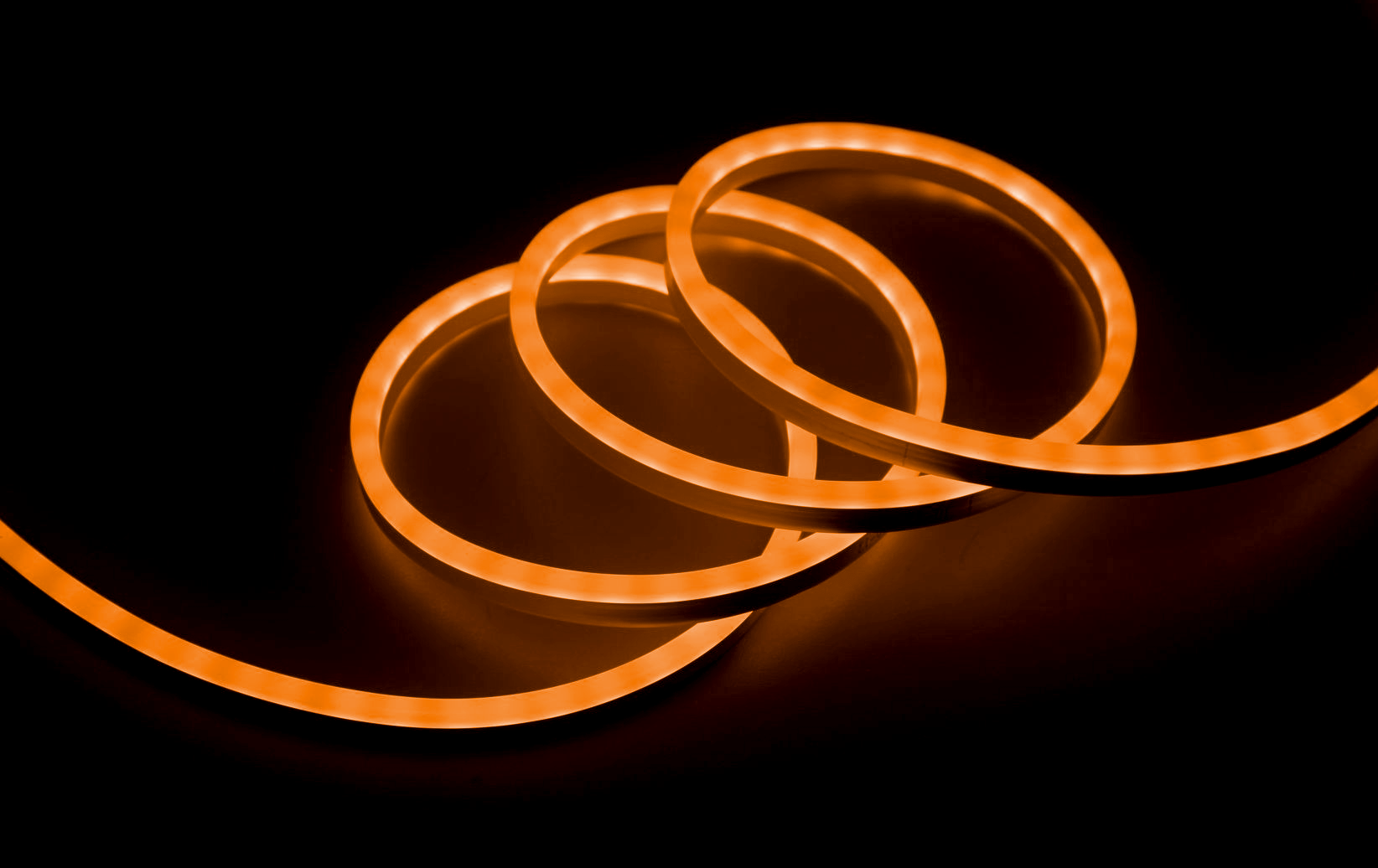

Super Orange

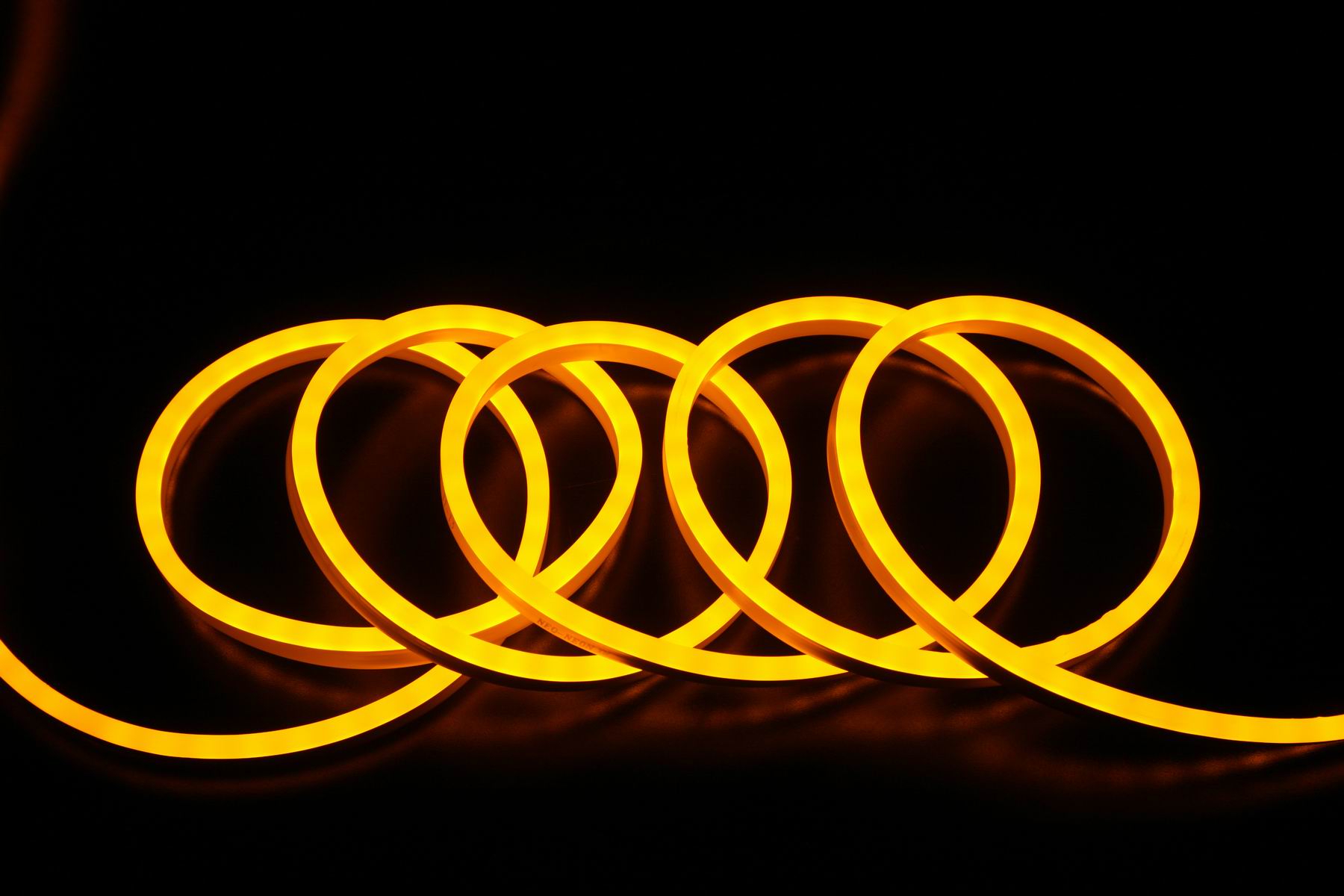

Amber Yellow

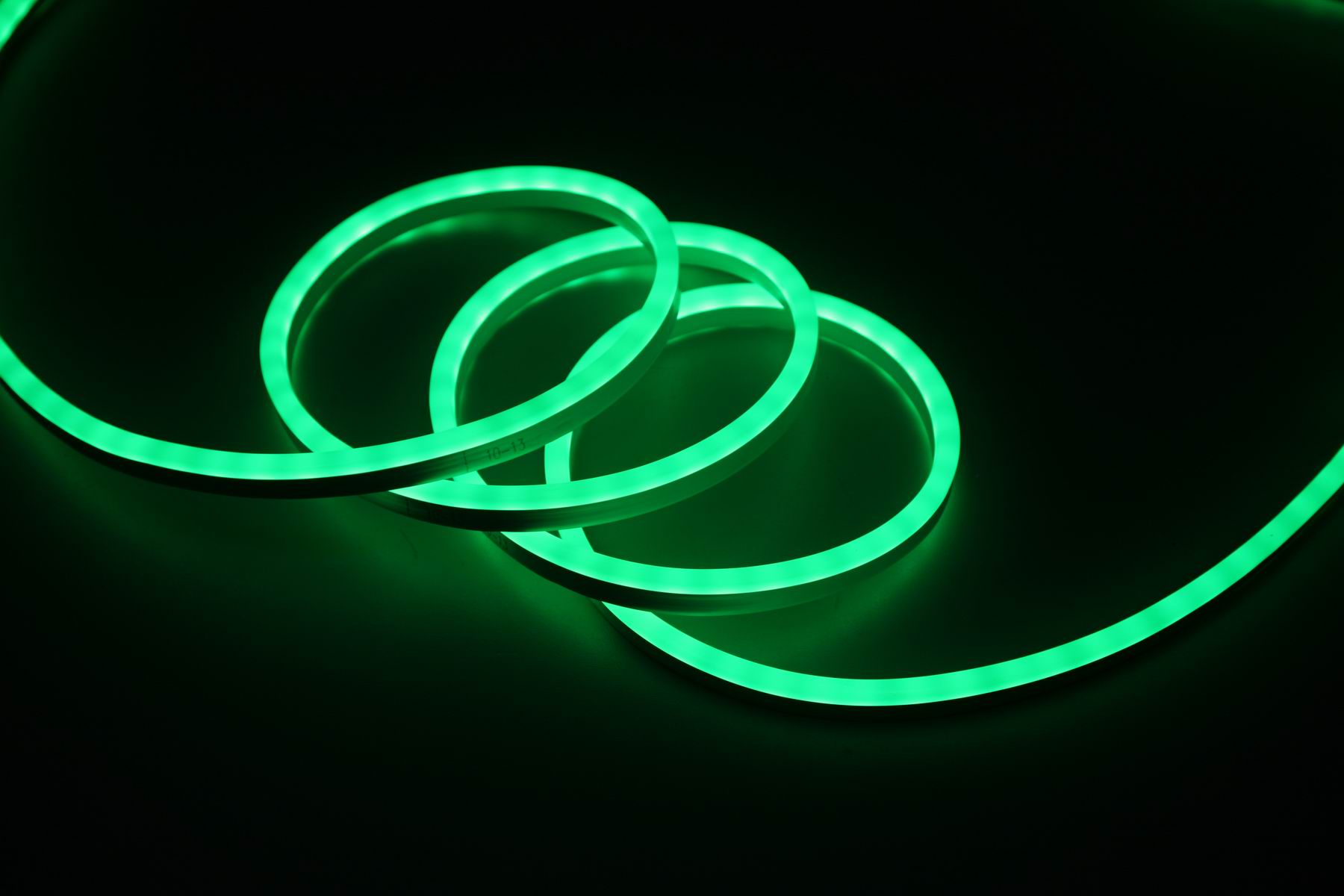

Aqua Green

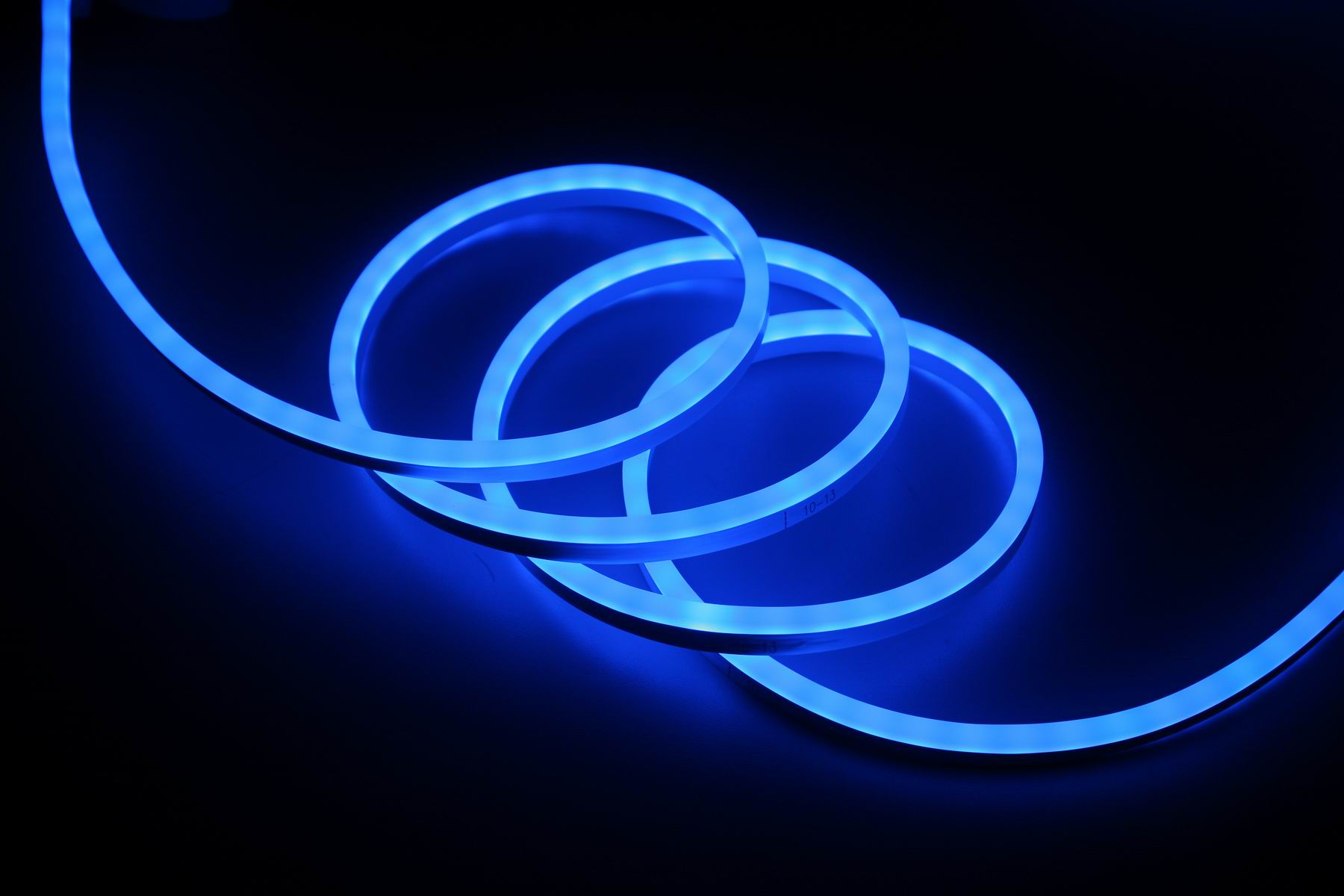

Pure Blue
Prop. 65 Warning
