Part #: SBX001-150W-XPW-105A-B-PMD
(100-277Vac,5000K,150W,V,PC,MS,DIM(EOL))

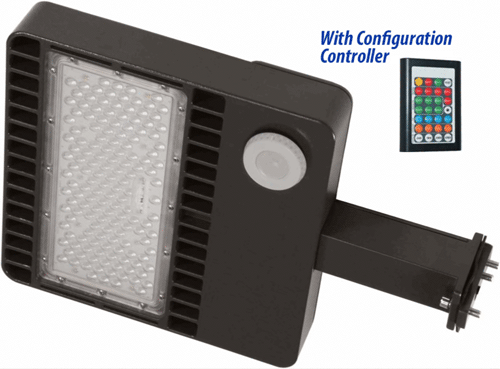

Low-Profile Shoebox Area Luminaire, Mounting Bracket Straight Arm/Round Pole, Pure White, 100-277Vac2- & 3-Step Dimming, DALI Compatibility, Motion & Dusk-to-Dawn SensorsArea Lighting for Parking Lots, Walkways, Parks, Playgrounds
2- & 3-Step Dimming, DALI Compatibility, Motion & Dusk-to-Dawn SensorsArea Lighting for Parking Lots, Walkways, Parks, Playgrounds
Area Lighting for Parking Lots, Walkways, Parks, Playgrounds
| Replaces Incandescent/LED: | Replaces Up to 700W HID |
Features
- 5 Year LEDtronics Warranty
- Remotely Programmed with Handheld Configuration Controller Provided with Each Luminaire
- Installed With Mounting Bracket Straight Arm/Square Pole
- Occupant Motion Sensor and Dawn-to-Dusk Photo Sensor
- DALI Compatible: Equipped with ANSI C136.41 7-pin receptacle for future DALI photocell (comes with conventional photocell)
- 3-Step Dimming Capable (Full-On, Dimming, Off) and 2-Step Dimming (Full-On or Dimmed Light, doesn't shut completely off)
- Luminaire Can Learn to Activate/Deactivate at a Daylight-Sensed Custom Lux Threshold with a Push of a Button.
- Energy Savings of up to 70% over HID Lamps
- IP65 Rated: Suitable for Wet Locations
- Lumen Maintenance over 70% @ 50,000+ Hours
- IESNA Type-V Circular Lighting Pattern
- Coffee-Bronze Marine Grade Finish
- High Lumen, High Efficacy, No Glare
- Solid State: Shock & Vibration Resistant
- 40+ Years LEDtronics Design & Manufacturing
Choose Options:
Voltage OptionsPower OptionsColor/Temp OptionsBase Type OptionsDimensions Options
Specifications
| Web Description | Low-Profile Shoebox Area Luminaire, Mounting Bracket Straight Arm/Round Pole, Pure White, 100-277Vac, 151.8W |
|---|---|
| Color | Pure White |
| Color Temp | 5000K |
| Voltage (V) | 100-277Vac |
| Power (Watts) | 151.8 W |
| Wattage Equivalent | Replaces Up to 700W HID |
| Current (Amps) | 1.046 A |
| Operating Temp | -30°C to +45°C |
| Power Factor | |
| Efficacy | |
| Intensity (Candela) | |
| Lumens | 20.647 lm |
| CRI | 70 |
| Viewing Angle | 120° |
| Illum Pttrn | |
| Electrical-Optical Characteristics (Ta = 25°C) | |
