Home > Products > SBX002-300W-XNW-105A-C
 |
Part #: SBX002-300W-XNW-105A-C
(100-277Vac,4000K,300Watt,TypeV(EOL))

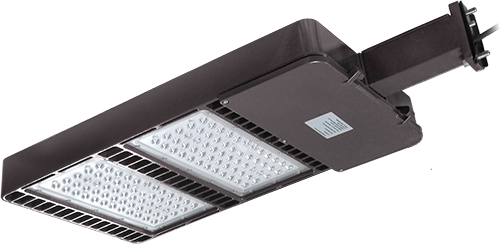

Low-Profile Shoebox Area Luminaire, Mounting Bracket Straight Arm/Round Pole, Natural White, 100-277VacType-V 120° Circular Beam, Different mounting accessories availableArea Lighting for Parking Lots, Walkways, Parks, Playgrounds
Type-V 120° Circular Beam, Different mounting accessories availableArea Lighting for Parking Lots, Walkways, Parks, Playgrounds
Area Lighting for Parking Lots, Walkways, Parks, Playgrounds
| Replaces Incandescent/LED: | Replaces Up to 1000W MH/HPS |
Features
- 5 Year LEDtronics Warranty
- Energy Savings of up to 70% over HID Lamps
- IP65 Rated: Suitable for Wet Locations
- Lumen Maintenance over 70% @ 50,000+ Hours
- IESNA Type V Circular Lighting Pattern
- High Lumen, High Efficacy
- Hollowed-out Heatsink Design for Efficient Heat Dissipation & Lighter Body
- Bronze Marine-Grade Powder Coated Finish
- Multiple Mounting Options (See Accessories)
- Solid State: Shock & Vibration Resistant
- 40+ Years LEDtronics Design & Manufacturing
Choose Options:
Voltage OptionsPower OptionsColor/Temp OptionsBase Type OptionsDimensions Options
Spec Sheets
Applications
- Parking Lots & Structures
- Roadway & Street Lighting
- Building Security Floodlights
- Pole-Mounted Area Lighting
- Tennis Courts, Stadiums
- Tunnels, Underpass, Caves
- Parks, Playgrounds
- Driveway, Walkway Lighting
- Construction Lighting
Specifications
| Web Description | Low-Profile Shoebox Area Luminaire, Mounting Bracket Straight Arm/Round Pole, Natural White, 100-277Vac, 293W |
|---|---|
| Color | Natural White |
| Color Temp | 4000K |
| Voltage (V) | 100-277Vac |
| Power (Watts) | 293 W |
| Wattage Equivalent | Replaces Up to 1000W MH/HPS |
| Current (Amps) | 2.5 A |
| Operating Temp | -30°C to +45°C |
| Power Factor | |
| Efficacy | |
| Intensity (Candela) | 13,867 cd |
| Lumens | 27,360 lm |
| CRI | |
| Viewing Angle | 120° |
| Illum Pttrn | |
| Electrical-Optical Characteristics (Ta = 25°C) | |
