Home > Products > SBX002-300W-XPW-205A-A
 |
Part #: SBX002-300W-XPW-205A-A
(480Vac,5000K,300Watts,Type V(EOL))

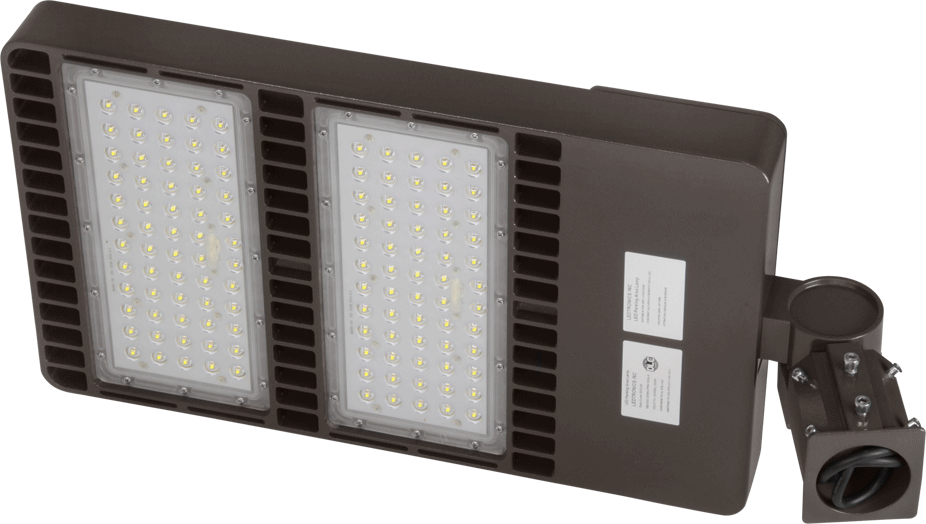

Low-Profile Shoebox Area Luminaire, Mounting Bracket Slipfitter For 60mm Pole, Pure White, 480VacType-V 120° Circular Beam, Different mounting accessories availableArea Lighting for Parking Lots, Walkways, Parks, Playgrounds
Type-V 120° Circular Beam, Different mounting accessories availableArea Lighting for Parking Lots, Walkways, Parks, Playgrounds
Area Lighting for Parking Lots, Walkways, Parks, Playgrounds
| Replaces Incandescent/LED: | Replaces Up to 1000W MH/HPS |
Features
- 5 Year LEDtronics Warranty
- Energy Savings of up to 70% over HID Lamps
- IP65 Rated: Suitable for Wet Locations
- Lumen Maintenance over 70% @ 50,000+ Hours
- IESNA Type V Circular Lighting Pattern
- High Lumen, High Efficacy
- Hollowed-out Heatsink Design for Efficient Heat Dissipation & Lighter Body
- Bronze Marine-Grade Powder Coated Finish
- Multiple Mounting Options (See Accessories)
- Solid State: Shock & Vibration Resistant
- 40+ Years LEDtronics Design & Manufacturing
Choose Options:
Voltage OptionsPower OptionsColor/Temp OptionsBase Type OptionsDimensions Options
Applications
- Parking Lots & Structures
- Roadway & Street Lighting
- Building Security Floodlights
- Pole-Mounted Area Lighting
- Tennis Courts, Stadiums
- Tunnels, Underpass, Caves
- Parks, Playgrounds
- Driveway, Walkway Lighting
- Construction Lighting
Specifications
| Web Description | Low-Profile Shoebox Area Luminaire, Mounting Bracket Slipfitter For 60mm Pole, Pure White, 480Vac, 300W |
|---|---|
| Color | Pure White |
| Color Temp | 5000K |
| Voltage (V) | 480Vac |
| Power (Watts) | 300 W |
| Wattage Equivalent | Replaces Up to 1000W MH/HPS |
| Current (Amps) | 1.1 A |
| Operating Temp | -30°C to +45°C, IP65 |
| Power Factor | 0.93 |
| Efficacy | 94 |
| Intensity (Candela) | 12,000 cd |
| Lumens | 29,000 lm |
| CRI | 72 |
| Viewing Angle | 120° |
| Illum Pttrn | Type V (Circular) |
| Electrical-Optical Characteristics (Ta = 25°C) | |
