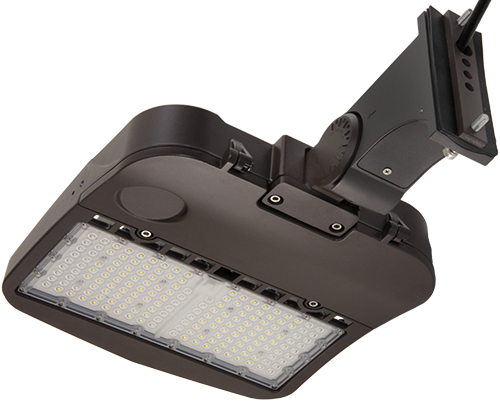

Part #: SBX002T-200W-XPW-105A-BNS-B
Features
- 5 Year LEDtronics Warranty
- One piece die-cast aluminum housing with UV resistant polycarbonate optical lens
- Energy Savings of up to 70% over HID Lamps
- IP65 Rated: Suitable for Wet Locations
- Optional Color Temperatures of 3000K Warm White and 4000K Natural White
- Lumen Maintenance over 70% @ 50,000+ Hours
- IESNA Type-V Circular Lighting Pattern (More at Options)
- Coffee-Bronze, Durable, Powder-Coated Finish
- Wall Mount, Slipfitters, Pole Mount, Yoke Mount Options
- High Lumen, High Efficacy, No Glare
- Solid State: Shock & Vibration Resistant
- LM79 and LM80 Test Reports Available
- 40+ Years LEDtronics Design & Manufacturing
Choose Options:
Power (nominal) OptionsColor/Temp OptionsBracket OptionsSensor Options
Applications
- Parking Lots & Structures
- Roadway & Street Lighting
- Building Security Floodlights
- Up/Down Spotlighting
- Pole-Mounted Area Lighting
- Tennis Courts, Stadiums, Parks, Playgrounds
- Tunnels, Caves, Mines
- Driveway & Walkway Lighting
- Construction Lighting
- (For Photosensor & Occupancy Sensor Equipped Luminaires: Energy-Saving Applications Requiring Motion Detection &-/-OR Dusk-to-Dawn Light Activation)
Specifications
| Web Description | Low-Profile Shoebox Area Luminaire,Mounting Trunion Adustable Yoke,Pure White,120-277Vac,200 WW |
|---|---|
| Color | Pure White |
| Color Temp | 5000K |
| Voltage (V) | 100~277Vac (Tested@120Vac) |
| Power (Watts) | 206.5 W |
| Current (Amps) | ~1.67 A |
| Operating Temp | -20°C ~+50°C, IP65 |
| Power Factor | 0.9153 |
| Efficacy | 137.45 |
| Intensity (Candela) | -- cd |
| Lumens | 28383 lm |
| CRI | 70 |
| Viewing Angle | 140° |
| Illum Pttrn | Type-V (Circular) |
| Electrical-Optical Characteristics (Ta = 25°C) | |
Possible Options
-
For quantity orders and qualifying applications:
- Shorting Caps
- Surge Protectors
- Black, Silver, White Powder Coat Finishes Available
- 277-480V Higher Voltages Available
- IESNA III, IV Lighting Patterns Available Along with Circular IESNA V Patterns
Accessories (Consult with Sales)
- Installation Bracket Code:
- "-A" Adjustable Slipfitter Pole-end Arm
- "-B" Square/Round Pole Side-mount w/ Adjustable Slipfitter Bracket
- "-C" Square/Round Pole Side-mount Bracket
- "-D" Trunnion Bracket Wall Mount
- "-E" Yoke Bracket Arm
- "-A" Adjustable Slipfitter Pole-end Arm
- "BNS": Blank, No Sensors
- "PIR": Passive Infrared Motion Sensor
- "MWS": Microwave Motion Sensor
- "PTC": Photocontrol (Daylight/Ambient Light)
- "PIP": Passive Infrared & Photocontrol Sensor
- "MSP": Microwave Motion & Photocontrol Sensor
