Part #: SBX002T-200W-XPW-105A-BNS-E
(120-277Vac,No Snsr,5000K,Typ-V,E-Br(EOL))

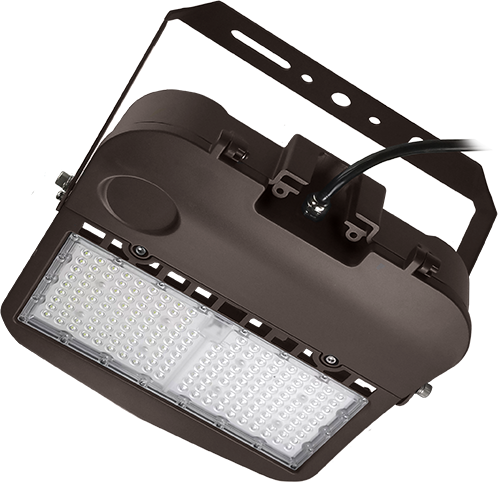

Low-Profile Shoebox Area Luminaire, Yoke Mounting Bracket, Pure White, 120-277VacType-V Beam, 0-10Vdc DimmableArea Lighting for Parking Lots, Walkways, Parks, Playgrounds
Type-V Beam, 0-10Vdc DimmableArea Lighting for Parking Lots, Walkways, Parks, Playgrounds
Area Lighting for Parking Lots, Walkways, Parks, Playgrounds
| Replaces Incandescent/LED: | Replaces Up to 700W MH/HPS |
Features
- 5 Year LEDtronics Warranty
- One piece die-cast aluminum housing with UV resistant polycarbonate optical lens
- Energy Savings of up to 70% over HID Lamps
- IP65 Rated: Suitable for Wet Locations
- Optional Color Temperatures of 3000K Warm White and 4000K Natural White
- Lumen Maintenance over 70% @ 50,000+ Hours
- IESNA Type-V Circular Lighting Pattern (More at Options)
- Coffee-Bronze, Durable, Powder-Coated Finish
- Wall Mount, Slipfitters, Pole Mount, Yoke Mount Options
- High Lumen, High Efficacy, No Glare
- Solid State: Shock & Vibration Resistant
- LM79 and LM80 Test Reports Available
- 40+ Years LEDtronics Design & Manufacturing
Choose Options:
Voltage OptionsPower OptionsColor/Temp OptionsBase Type OptionsDimensions Options
Spec Sheets
Applications
- Parking Lots & Structures
- Roadway & Street Lighting
- Building Security Floodlights
- Up/Down Spotlighting
- Pole-Mounted Area Lighting
- Tennis Courts, Stadiums, Parks, Playgrounds
- Tunnels, Caves, Mines
- Driveway & Walkway Lighting
- Construction Lighting
- (For Photosensor & Occupancy Sensor Equipped Luminaires: Energy-Saving Applications Requiring Motion Detection &-/-OR Dusk-to-Dawn Light Activation)
Specifications
| Web Description | Low-Profile Shoebox Area Luminaire, Yoke Mounting Bracket, Pure White, 120-277Vac, 206.5W |
|---|---|
| Color | Pure White |
| Color Temp | 5000K |
| Voltage (V) | 120-277Vac |
| Power (Watts) | 206.5 W |
| Wattage Equivalent | Replaces Up to 700W MH/HPS |
| Current (Amps) | 2.2 A |
| Operating Temp | -30°C to +45°C |
| Power Factor | |
| Efficacy | |
| Intensity (Candela) | 13,453 cd |
| Lumens | 28,383 lm |
| CRI | |
| Viewing Angle | 120° |
| Illum Pttrn | |
| Electrical-Optical Characteristics (Ta = 25°C) | |
