Part #: SML0606-ER/UG-TR

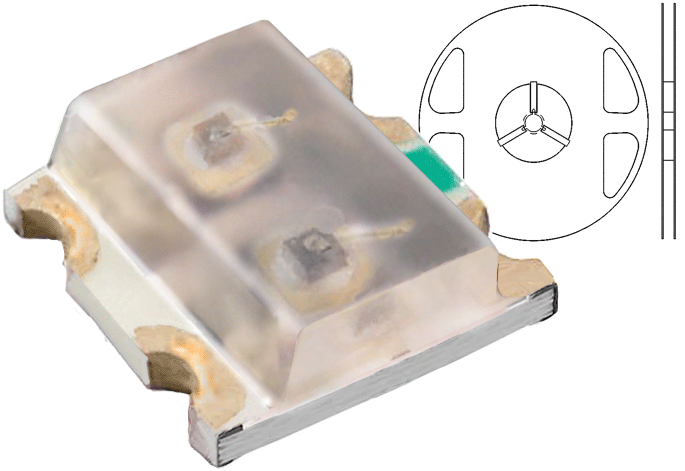

(SMD 0606 (1.6x1.5mm),Sp.Red/Ul.Green)
LEDs, Surface Mount, 0606 Profile, 0.063"Lx0.059"W, Super Red/Ultra Green, 2.0Vf/2.0VfUltra-Bright, Wide Angle, BiColor Red-Green, Ultra-miniature SMD
Features- 1 Year LEDtronics Warranty
- Standard 0606 SMD package
- 1.6 x 0.8 x 0.55mm height chip
- ~150° to ~160° Wide Beam Angle
- Pb-free, epoxy resin lens
- Available as tape & reel.
- 40+ Years LEDtronics Design & Manufacturing
Price: $0.35 each | Min Qty: 4000
Ultra-Bright, Wide Angle, BiColor Red-Green, Ultra-miniature SMD
Features- 1 Year LEDtronics Warranty
- Standard 0606 SMD package
- 1.6 x 0.8 x 0.55mm height chip
- ~150° to ~160° Wide Beam Angle
- Pb-free, epoxy resin lens
- Available as tape & reel.
- 40+ Years LEDtronics Design & Manufacturing
Price: $0.35 each | Min Qty: 4000
Features
- 1 Year LEDtronics Warranty
- Standard 0606 SMD package
- 1.6 x 0.8 x 0.55mm height chip
- ~150° to ~160° Wide Beam Angle
- Pb-free, epoxy resin lens
- Available as tape & reel.
- 40+ Years LEDtronics Design & Manufacturing
Price: $0.35 each | Min Qty: 4000
Choose Options:
Base Type OptionsColor OptionsVoltage OptionsDimensions Options
Specifications
| Web Description | Discrete LED, SMD Surface Mount, SMD0606 (1.6x1.5mm), 0.063"Lx0.059"W,( 1.6X1.5mm), Super Red/Ultra Green, 2.0Vf/2.0Vf |
|---|---|
| Description | SMD 0606 (1.6x1.5mm),Sp.Red/Ul.Green |
| Description | SMD 0606 (1.6x1.5mm),Sp.Red/Ul.Green |
| Dimensions | 0.063"Lx0.059"W |
| Color | Sp.Red/Ul.Green |
| Wavelength (nm) | 630/572nm |
| λp, nm | 630/572nm |
| Voltage (V) | 2.0Vf/2.0Vf |
| Current (Amps) | 0.020 A |
| Operating Temp | -40°C~+85°C |
| Viewing Angle | ~120° |
| Electrical-Optical Characteristics (Ta = 25°C) | |
